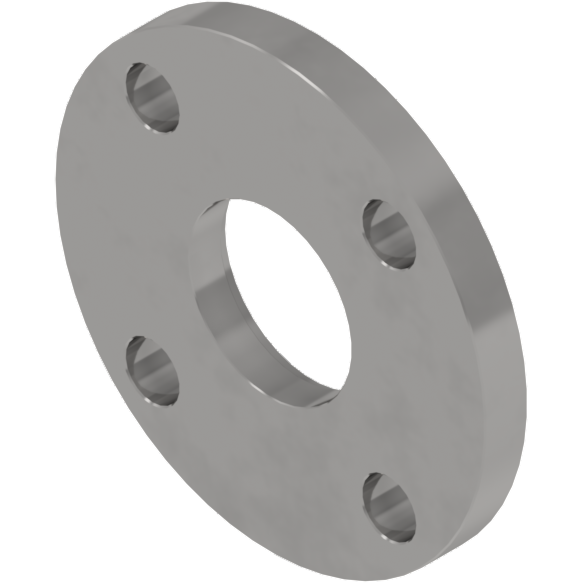

ASA-5-B

Non-Rotatable ASA Flanges

Key High's ASA flanges are directly descended from ASA/ANSI 150 # flanges. ASA /ANSI flanges are usually found in larger-scale industrial equipment. Our ASA flanges are manufactured from 304 stainless steel and are sized to accept tubing from 1-1/2" OD to 12" OD.

These ASA flanges are rugged and designed to be used in high vacuum and medium pressure applications. The large bolts used on ASA flanges can withstand vibration and temperature extremes. As with all the O-ring flanges in this section, one flange has an O-ring groove, and the other mating flange is smooth-faced.
  • Manufactured from 304 Stainless Steel
  • Grooved flanges include Viton® O-Ring
  • Operating temperature 0 to 180°C
  • Offered for 1-1/2" OD tube to 12" OD tube





Non-Rotatable ASA Flanges Ordering Information

Non-Rotatable ASA Flanges Ordering Information

Non-Rotatable ASA Flanges Ordering Information


PART NUMBER A FLANGE DIA B C D E F NUMBER OF HOLES HOLE DIA O-RING NO.
ASA-4-P 4.250" 3.125" .500" - - - 4 .625" -
ASA-4-P-O 4.250" 3.125" .500" - - - 4 .625" 2-226
ASA-4-B 4.250" 3.125" .500" 1.510" 1.375" .375" 4 .625" -
ASA-4-B-O 4.250" 3.125" .500" 1.510" 1.375" .375" 4 .625" 2-226
ASA-5-P 5.000" 3.880" .500" - - - 4 .625" -
ASA-5-P-O 5.000" 3.880" .500" - - - 4 .625" 2-231
ASA-5-B 5.000" 3.880" .500" 2.010" 1.875 .375" 4 .625" -
ASA-5-B-O 5.000" 3.880" .500" 2.010" 1.875" .375" 4 .625" 2-231
ASA-5-B-25 5.000" 3.880" .500" 2.510" 2.375" .375" 4 .625" -
ASA-5-B-25-O 5.000" 3.880" .500" 2.510" 2.375" .375" 4 .625" 2-231
ASA-6-P 6.000" 4.750" .500" - - - 4 .687" -
ASA-6-P-O 6.000" 4.750" .500" - - - 4 .687" 2-238
ASA-6-B 6.000" 4.750" .500" 3.010" 2.937" .375" 4 .687" -
ASA-6-B-O 6.000" 4.750" .500" 3.010" 2.937" .375" 4 .687" 2-238
ASA-6-B-35 6.000" 4.750" .500" 3.510" 3.437" .375" 4 .687" -
ASA-6-B-35-O 6.000" 4.750" .500" 3.510" 3.437" .375" 4 .687" 2-239
ASA-7-P 7.500" 6.000" .500" - - - 4 .750" -
ASA-7-P-O 7.500" 6.000" .500" - - - 4 .750" 2-243
ASA-7-B 7.500" 6.000" .500" 4.015" 3.875" .375" 4 .750" -
ASA-7-B-O 7.500" 6.000" .500" 4.015" 3.875" .375" 4 .750" 2-243
ASA-9-P 9.000" 7.500" .500" - - - 8 .687" -
ASA-9-P-O 9.000" 7.500" .500" - - - 8 .687" 2-259
ASA-9-B 9.000" 7.500" .500 4.015" 3.875" .375" 8 .687" -
ASA-9-B-O 9.000" 7.500" .500" 4.015" 3.875" .375" 8 .687" 2-259
ASA-9-B-6 9.000" 7.500" .500" 6.025" 5.875" .375" 8 .687" -
ASA-9-B-6-O 9.000" 7.500" .500" 6.025" 5.875" .375" 8 .687" 2-259
ASA-11-P 11.000" 9.500" .750" - - - 8 .812" -
ASA-11-P-O 11.000" 9.500" .750" - - - 8 .812" 2-266
ASA-11-B 11.000" 9.500" .750" 6.025" 5.875" .375" 8 .812" -
ASA-11-B-O 11.000" 9.500" .750" 6.025" 5.875" .375" 8 .812" 2-266
ASA-11-B-8 11.000" 9.500" .750" 8.025" 7.875" .375" 8 .812" -
ASA-11-B-8-O 11.000" 9.500" .750" 8.025" 7.875" .375" 8 .812" 2-266
ASA-13-P 13.500" 11.750" .750" - - - 8 .812" -
ASA-13-P-O 13.500" 11.750" .750" - - - 8 .812" 2-274
ASA-13-B 13.500" 11.750" .750" 8.025" 7.875" .375" 8 .812" -
ASA-13-B-O 13.500" 11.750" .750" 8.025" 7.875" .375" 8 .812" 2-274
ASA-13-B-10 13.500" 11.750" .750" 10.025" 9.875" .375" 8 .812" -
ASA-13-B-10-O 13.500" 11.750" .750" 10.025" 9.875" .375" 8 .812" 2-274
ASA-16-P 16.000" 14.250" .750" - - - 12 .812" -
ASA-16-P-O 16.000" 14.250" .750" - - - 12 .812" 2-278
ASA-16-B 16.000" 14.250" .750" 10.025" 9.875" .375" 12 .812" -
ASA-16-B-O 16.000" 14.250" .750" 10.025" 9.875" .375" 12 .812" 2-278
ASA-16-B-12 16.000" 14.250" .750" 12.025" 11.875" .375" 12 .812" -
ASA-16-B-12-O 16.000" 14.250" .750" 12.025" 11.875" .375" 12 .812" 2-278
