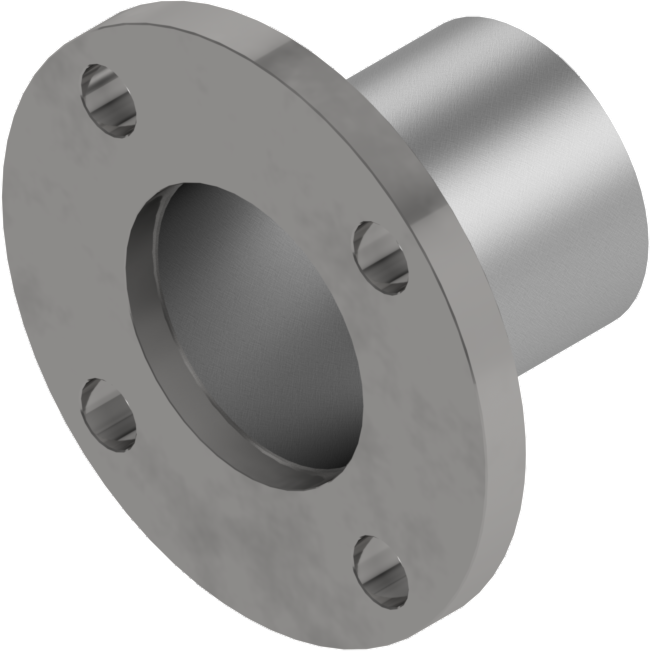

ASA Half Nipples
| PART NUMBER | A FLANGE DIAMETER | B | C |
|---|---|---|---|
| 550100 | 5.00" | 2.00" | 3-1/4" |
| 550101 | 5.00" | 2.50" | 3-1/4" |
| 550102 | 5.00" | 2.50" | 4" |
| 550103 | 6.00" | 3.00" | 3-1/2" |
| 550104 | 7.50" | 4.00" | 4-1/8" |
| 550105 | 7.50" | 4.00" | 5-1/8" |
| 550106 | 9.00" | 4.00" | 4-1/8" |
| 550107 | 9.00" | 4.00" | 5-1/8" |
| 550108 | 9.00" | 6.00" | 5-1/4" |
| 550109 | 9.00" | 6.00" | 6-5/16" |
| 550110 | 11.00" | 6.00" | 5-3/8" |
| 550111 | 11.00" | 6.00" | 6-7/16" |
| 550112 | 11.00" | 8.00" | 7-3/8" |
| 550113 | 13.50" | 8.00" | 7-3/4" |
| 550114 | 13.50" | 10.00" | 9-7/8" |
| 550115 | 16.00" | 10.00" | 9-7/8" |
| 550116 | 16.00" | 12.00" | 9-7/8" |
ASA Full Nipples
| PART NUMBER | A FLANGE DIAMETER | B | C |
|---|---|---|---|
| 560100 | 5.00" | 2.00" | 6-1/2" |
| 560101 | 5.00" | 2.50" | 6-1/2" |
| 560102 | 5.00" | 2.50" | 8" |
| 560103 | 6.00" | 3.00" | 7" |
| 560104 | 7.50" | 4.00" | 8-1/4" |
| 560105 | 7.50" | 4.00" | 10-1/4" |
| 560106 | 9.00" | 4.00" | 8-1/4" |
| 560107 | 9.00" | 4.00" | 10-1/4" |
| 560108 | 9.00" | 6.00" | 10-1/2" |
| 560109 | 9.00" | 6.00" | 12-5/8" |
| 560110 | 11.00" | 6.00" | 10-3/4" |
| 560111 | 11.00" | 6.00" | 12-7/8" |
| 560112 | 11.00" | 8.00" | 14-3/4" |
| 560113 | 13.50" | 8.00" | 15-1/2" |
| 560114 | 13.50" | 10.00" | 19-3/4" |
| 560115 | 16.00" | 10.00" | 19-3/4" |
| 560116 | 16.00" | 12.00" | 19-3/4" |
Options:
Add option code to suffix of part number.
| DESCRIPTION | OPTION CODE |
|---|---|
| O-Ring Required on Non-Rotatable Flange | -01 |
| O-Ring Required on Rotatable Flange | -02 |
| O-Ring Required on Both Flanges | -03 |
Product information is subject to change without notice. Product images may include options or accessories not included with the base model.
