| PART NUMBER | FLANGE SIZES | A | TUBE |
|---|---|---|---|
| RN-ASA-9-5 | 9" OD to 5" OD | 4.50 | 2" OD |
| RN-ASA-9-6 | 9" OD x 6" OD | 4.50 | 3" OD |

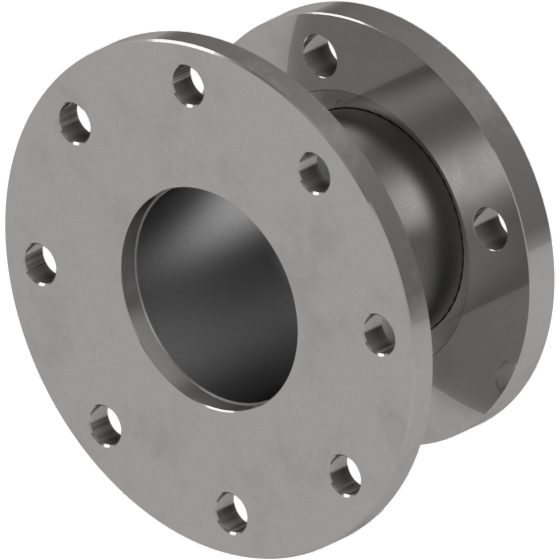

| RN-ASA-9-7.5 | 9" OD x 7-1/2" OD | 4.50 | 4" OD |
| RN-ASA-11-5 | 11" OD x 5" OD | 4.75 | 2" OD |
| RN-ASA-11-6 | 11" OD x 6" OD | 4.75 | 3" OD |
| RN-ASA-11-7.5 | 11" OD x 7-1/2" OD | 4.75 | 4" OD |
| RN-ASA-11-9 | 11" OD x 9" OD | 4.75 | 6" OD |
| RN-ASA-13.5-9 | 13-1/2" OD x 9" OD | 5.00 | 6" OD |
| RN-ASA-13.5-11 | 13-1/2" OD x 11" OD | 5.00 | 8" OD |
| RN-ASA-16-11 | 16" OD x 11" OD | 5.00 | 8" OD |
| RN-ASA-16-13.5 | 16" OD x 13-1/2 OD | 5.00 | 10" OD |
O-ring grooves are available on ASA flanges. Add option code to suffix of part number.
| DESCRIPTION | OPTION CODE |
|---|---|
| One O-ring Groove. Designate Which Flange is Required with O-ring Groove. | -1OR |
| Two O-Ring Grooves Required. | -2OR |
| PART NUMBER | MET-SEAL OD | ASA OD | A | TUBE OD |
|---|---|---|---|---|
| FN133-ASA4 | 1-1/3" | 4-1/4" | 5.00 | 3/4" |
| FN133-ASA5 | 1-1/3" | 5" | 5.00 | 3/4" |
| FN275-ASA5 | 2-3/4" | 5" | 5.00 | 1-1/2" |
| FN275-ASA6 | 2-3/4" | 6" | 5.00 | 1-1/2" |
| FN275-ASA7.5 | 2-3/4" | 7-1/2" | 5.00 | 1-1/2" |
| FN275-ASA9 | 2-3/4" | 9" | 5.00 | 1-1/2" |
| FN275-ASA11 | 2-3/4" | 11" | 5.00 | 1-1/2" |
| FN338-ASA5 | 3-3/8" | 5" | 5.00 | 2" |
| FN338-ASA6 | 3-3/8" | 6" | 5.00 | 2" |
| FN338-ASA7.5 | 3-3/8" | 7-1/2" | 5.00 | 2" |
| FN338-ASA9 | 3-3/8" | 9" | 5.00 | 2" |
| FN338-ASA11 | 3-3/8" | 11" | 5.00 | 2" |
| FN450-ASA5 | 4-1/2" | 5" | 5.00 | 2-1/2" |
| FN450-ASA6 | 4-1/2" | 6" | 5.00 | 2-1/2" |
| FN450-ASA7.5 | 4-1/2" | 7-1/2" | 5.00 | 2-1/2" |
| FN450-ASA9 | 4-1/2" | 9" | 5.00 | 2-1/2" |
| FN450-ASA11 | 4-1/2" | 11" | 5.00 | 2-1/2" |
| FN600-ASA7.5 | 6" | 7-1/2" | 5.00 | 4" |
| FN600-ASA9 | 6" | 9" | 5.00 | 4" |
| FN600-ASA11 | 6" | 11" | 5.00 | 4" |
| FN800-ASA7.5 | 8" | 7-1/2" | 5.00 | 4" |
| FN800-ASA9 | 8" | 9" | 5.00 | 6" |
| FN800-ASA11 | 8" | 11" | 5.00 | 6" |
| FN1000-ASA7.5 | 10" | 7-1/2" | 5.00 | 4" |
| FN1000-ASA9 | 10" | 9" | 5.00 | 6" |
| FN1000-ASA11 | 10" | 11" | 5.00 | 8" |
O-ring grooves are available on all ASA flanges. Add option code to suffix of part number.
| DESCRIPTION | OPTION CODE |
|---|---|
| One O-ring Groove. Designate Which Flange is Required with O-ring Groove. | -1OR |
