ASA to MET-SEAL Zero Length Reducer With O-ring Groove
| PART NUMBER |
ASA OD |
B1 |
BOLT NO. |
B2 |
A |
C |
D |
| ZLR-ASA4-133-O |
4-1/4" |
3.12 |
4 |
1.062 |
.62 |
8-32 |
.50 |
| ZLR-ASA5-133-O |
5" |
3.87 |
4 |
1.062 |
.62 |
8-32 |
.50 |
| ZLR-ASA5-275-O |
5" |
3.87 |
4 |
2.312 |
1.50 |
1/4-28 |
.50 |
| ZLR-ASA6-133-O |
6" |
4.75 |
4 |
1.062 |
.62 |
8-32 |
.50 |
| ZLR-ASA6-275-O |
6" |
4.75 |
4 |
2.312 |
1.50 |
1/4-28 |
.50 |
| ZLR-ASA6-338-O |
6" |
4.75 |
4 |
2.850 |
2.00 |
5/16-24 |
.50 |
| ZLR-ASA7-133-O |
7-1/2" |
6.00 |
4 |
1.062 |
.62 |
8-32 |
.50 |
| ZLR-ASA7-275-O |
7-1/2" |
6.00 |
4 |
2.312 |
1.50 |
1/4-28 |
.50 |
| ZLR-ASA7-338-O |
7-1/2" |
6.00 |
4 |
2.850 |
2.00 |
5/16-24 |
.50 |
| ZLR-ASA9-133-O |
9" |
7.50 |
4 |
1.062 |
.62 |
8-32 |
.50 |
| ZLR-ASA9-275-O |
9" |
7.50 |
4 |
2.312 |
1.50 |
1/4-28 |
.50 |
| ZLR-ASA9-338-O |
9" |
7.50 |
4 |
2.850 |
2.00 |
5/16-24 |
.50 |
| ZLR-ASA9-450-O |
9" |
7.50 |
4 |
3.625 |
2.50 |
5/16-24 |
.50 |

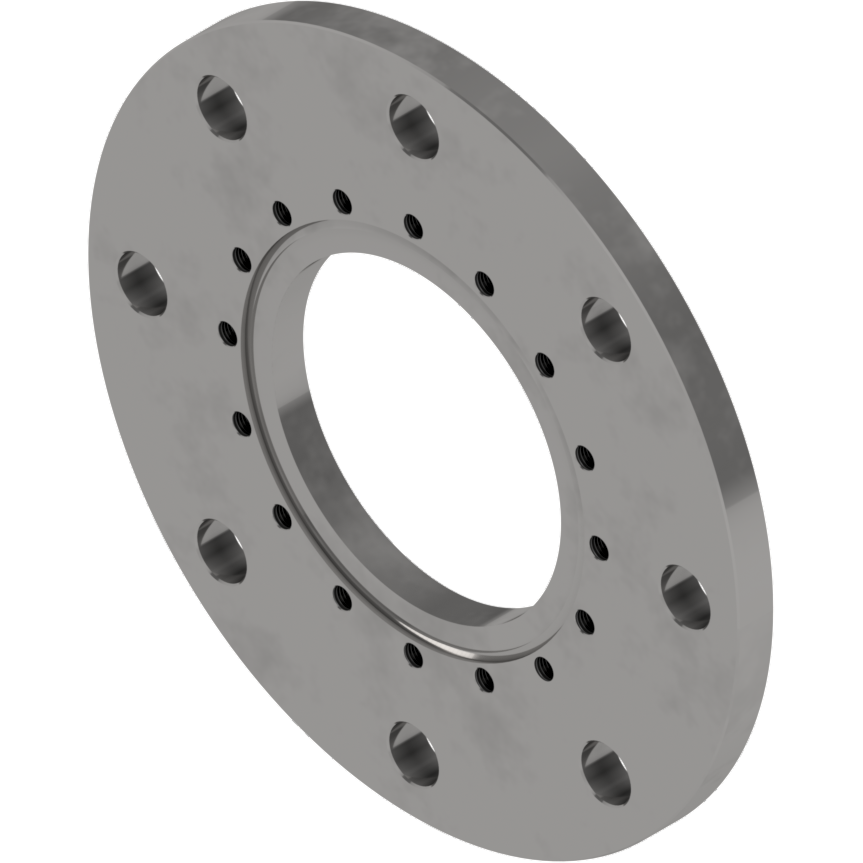

| ZLR-ASA9-600-O |
9" |
7.50 |
4 |
5.128 |
4.00 |
5/16-24 |
.50 |
| ZLR-ASA11-133-O |
11" |
9.50 |
8 |
1.062 |
.62 |
8-32 |
.75 |
| ZLR-ASA11-275-O |
11" |
9.50 |
8 |
2.312 |
1.50 |
1/4-28 |
.75 |
| ZLR-ASA11-338-O |
11" |
9.50 |
8 |
2.850 |
2.00 |
5/16-24 |
.75 |
| ZLR-ASA11-450-O |
11" |
9.50 |
8 |
3.628 |
2.50 |
5/16-24 |
.75 |
| ZLR-ASA11-600-O |
11" |
9.50 |
8 |
5.128 |
4.00 |
5/16-24 |
.75 |
| ZLR-ASA11-800-O |
11" |
9.50 |
8 |
7.128 |
6.00 |
5/16-24 |
.75 |
Product information is subject to change without notice. Product images may include options or accessories not included with the base model.
