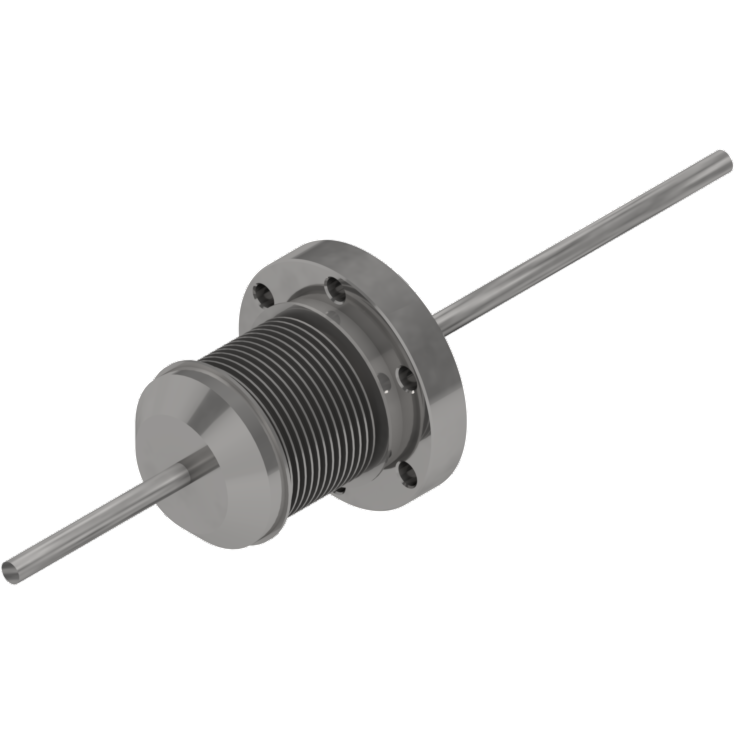

Wobble Stick Manipulator
KEY SPEEDY or MET-SEAL flange mounts standard
- AM 350 welded bellows
- Simple means of positioning samples
- Bakeable design
| PART NUMBER | FLANGE MOUNT | A | B | C | D | ANGLE |
|---|---|---|---|---|---|---|
| WSM-133 | 1-1/3" OD Mini | 3.5 | 3.0 | 6.0 | .12 | 44 degrees |
| WSM-16 | NW 16 | 3.5 | 3.0 | 6.0 | .12 | 44 degrees |
| WSM-275 | 2-3/4" OD MET-SEAL | 6.0 | 3.7 | 10.0 | .25 | 60 degrees |
| WSM-40 | NW 40 | 6.0 | 3.7 | 10.0 | .25 | 60 degrees |
Welded Bellows Volume Compensators
- AM-350 bellows
- TIG welded construction
- Other strokes, flanges available upon request
| PART NUMBER | A | B | C | D = EXT | E = COMP | STROKE |
|---|---|---|---|---|---|---|
| SSWB-NW16 | NW 16 | .63 | 1.24 | 1.65 | 1.26 | .394 |
| SSWB-NW40 | NW 40 | 1.54 | 2.32 | 1.77 | 1.30 | .472 |
| SSWB-NW63 | NW 63 | 2.95 | 3.94 | 3.35 | 2.87 | .472 |
| SSWB-NW100 | NW 100 | 4.02 | 5.20 | 3.74 | 3.27 | .472 |
| SSWB-NW160 | NW 160 | 5.91 | 7.28 | 4.17 | 3.70 | .472 |
| SSWB-MS275 | 2-3/4" OD MET-SEAL | 1.54 | 2.32 | 2.95 | 2.48 | .472 |
| SSWB-MS600 | 6" OD MET-SEAL | 4.02 | 5.20 | 3.74 | 3.27 | .472 |
| SSWB-MS800 | 8" OD MET-SEAL | 5.91 | 7.28 | 4.17 | 3.70 | .472 |
