| PART NUMBER | WALL THICKNESS | A | B | C | D | DEFLECTION + OR - |
|---|---|---|---|---|---|---|
| HFB-200 | .004 | .375 | .250 | .50 | 1.00 | 1/4” |
| HFB-201 | .004 | .450 | .312 | .50 | 1.00 | 1/4” |
| HFB-203 | .004 | .540 | .375 | .50 | 1.50 | 3/8" |
| HFB-204 | .005 | .740 | .500 | .50 | 1.50 | 3/8" |
| HFB-205 | .006 | .875 | .625 | .50 | 1.50 | 3/8" |
| HFB-206 | .006 | 1.030 | .750 | .50 | 1.50 | 1/2” |
| HFB-207 | .006 | 1.225 | .875 | .50 | 2.00 | 1/2” |
| HFB-208 | .006 | 1.36 | 1.00 | .75 | 2.00 | 1/2” |
| HFB-209 | .006 | 1.46 | 1.125 | .75 | 2.00 | 1/2” |
| HFB-210 | .006 | 1.60 | 1.250 | .75 | 2.00 | 1/2” |
| HFB-211 | .006 | 1.78 | 1.375 | .75 | 2.00 | 1/2” |
| HFB-212 | .006 | 1.91 | 1.500 | .75 | 2.00 | 1/2” |
| HFB-213 | .006 | 2.12 | 1.625 | .75 | 2.00 | 1/2” |
| HFB-214 | .006 | 2.22 | 1.750 | .75 | 2.00 | 1/2” |
| HFB-215 | .006 | 2.47 | 2.00 | .75 | 2.47 | 3/4” |
| HFB-216 | .007 | 2.90 | 2.25 | .75 | 2.50 | 3/4” |
| HFB-217 | .007 | 3.00 | 2.50 | .75 | 2.50 | 3/4” |
| HFB-218 | .007 | 3.75 | 3.00 | 1.00 | 3.00 | 3/4” |
| HFB-219 | .007 | 4.12 | 3.50 | 1.00 | 3.50 | 3/4” |

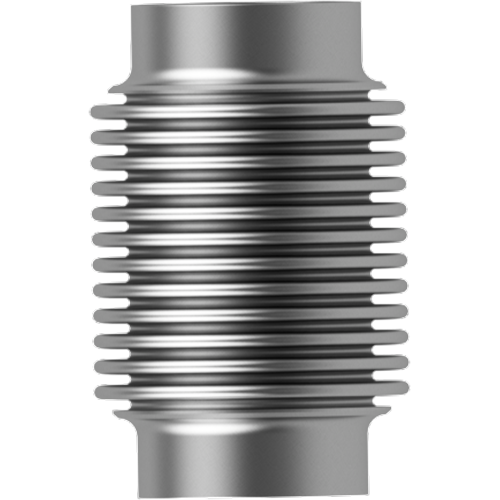

| HFB-220 | .008 | 4.75 | 4.00 | 1.00 | 4.00 | 1-1/4" |
| HFB-221 | .008 | 5.30 | 4.50 | 1.00 | 4.00 | 1-1/4" |
| HFB-222 | .008 | 5.85 | 5.00 | 1.00 | 5.00 | 1-1/2" |
| HFB-223 | .008 | 6.40 | 5.50 | 1.25 | 5.00 | 1-1/2" |
| HFB-224 | .010 | 7.00 | 6.00 | 1.25 | 5.00 | 1-1/2" |
| HFB-225 | .012 | 9.25 | 8.00 | 1.25 | 6.00 | 2" |
| HFB-226 | .012 | 11.87 | 10.00 | 1.25 | 6.00 | 2" |
