Flex Hoses Thick Wall
| PART NUMBER | HOSE I.D. | LENGTH | DESCRIPTION |
|---|---|---|---|
| KSH-4916 | 3/4” | 9.84” | NW 16 flange |
| KSH-5016 | 3/4” | 19.69” | NW 16 flange |
| KSH-5116 | 3/4” | 39.4” | NW 16 flange |
| KSH-4925 | 1" | 9.84” | NW 25 flange |
| KSH-5025 | 1" | 19.69” | NW 25 flange |
| KSH-5125 | 1" | 39.4” | NW 25 flange |

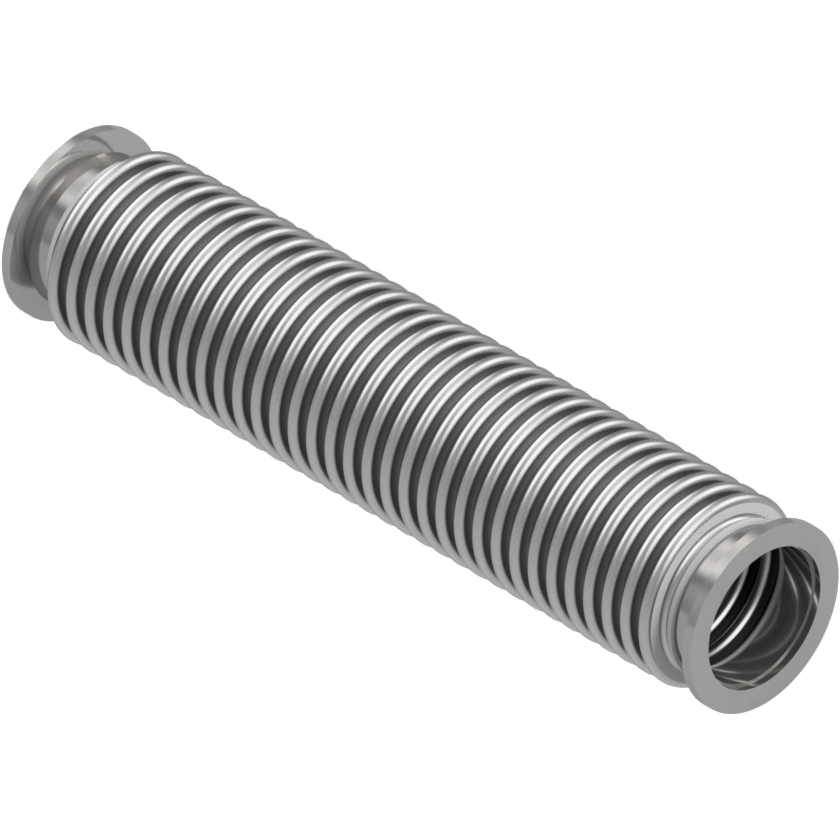

| KSH-4940 | 1-1/2" | 9.84” | NW 40 flange |
| KSH-5040 | 1-1/2" | 19.69” | NW 40 flange |
| KSH-5140 | 1-1/2" | 39.4” | NW 40 flange |
| KSH-4950 | 2" | 9.84” | NW 50 flange |
| KSH-5050 | 2" | 19.69” | NW 50 flange |
| KSH-5150 | 2" | 39.4” | NW 50 flange |
| KSH-7963-20 | 2-1/2" | 20" | NW 63 ISO flange |
| KSH-7963 | 2-1/2" | 24" | NW 63 ISO flange |
| KSH-8063 | 2-1/2" | 36" | NW 63 ISO flange |
| KSH-7963-40 | 2-1/2" | 40" | NW 63 ISO flange |
| KSH-7980-20 | 3" | 20" | NW 80 ISO flange |
| KSH-7980 | 3" | 24" | NW 80 ISO flange |
| KSH-8080 | 3" | 36" | NW 80 ISO flange |
| KSH-7980-40 | 3" | 40" | NW 80 ISO flange |
| KSH-79100-10 | 4" | 10" | NW 100 ISO flange |
| KSH-80100-15 | 4" | 15" | NW 100 ISO flange |
| KSH-79100-20 | 4" | 20" | NW 100 ISO flange |
| KSH-79100 | 4" | 24" | NW 100 ISO flange |
| KSH-80100 | 4" | 36" | NW 100 ISO flange |
| KSH-79100-40 | 4" | 40" | NW 100 ISO flange |
| KSH-79160-20 | 6" | 20" | NW 160 ISO flange |
| KSH-79160 | 6" | 24" | NW 160 ISO flange |
| KSH-80160 | 6" | 36" | NW 160 ISO flange |
| KSH-79160-40 | 6" | 40" | NW 160 ISO flange |
| KSH-79200-20 | 8" | 20" | NW 200 ISO flange |
| KSH-79200 | 8" | 24" | NW 200 ISO flange |
| KSH-80200 | 8" | 36" | NW 200 ISO flange |
| KSH-79200-40 | 8" | 40" | NW 200 ISO flange |
| KSH-79250-20 | 10" | 20" | NW 250 ISO flange |
| KSH-79250 | 10" | 24" | NW 250 ISO flange |
| KSH-80250 | 10" | 36" | NW 250 ISO flange |
| KSH-79250-40 | 10" | 40" | NW 250 ISO flange |
