| PART NUMBER | HOSE I.D. | LENGTH | DESCRIPTION |
|---|---|---|---|

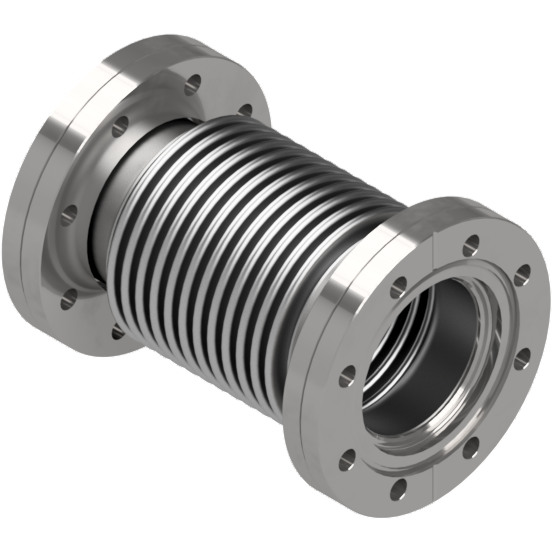

| BC-250-6 | 2-1/2" | 6" | 4-1/2"MET-SEAL® |
| BI-250-6 | 2-1/2" | 6" | NW 63 ISO flange |
| BT-250-6 | 2-1/2" | 6" | 2-1/2" OD tube |
| KSH-7863-9.8 | 2-1/2" | 9.8" | NW 63 ISO flange |
| BC-250-12 | 2-1/2" | 12" | 4-1/2" MET-SEAL® |
| BI-250-12 | 2-1/2" | 12" | NW 63 ISO flange |
| BT-250-12 | 2-1/2" | 12" | 2-1/2" OD tube |
| KSH-7863-19.7 | 2-1/2" | 19.7" | NW 63 ISO flange |
| BC-250-24 | 2-1/2" | 24" | 4-1/2" MET-SEAL® |
| BI-250-24 | 2-1/2" | 24" | NW 63 ISO flange |
| BT-250-24 | 2-1/2" | 24" | 2-1/2" OD tube |
| BC-250-36 | 2-1/2" | 36" | 4-1/2" OD MET-SEAL® |
| BI-250-36 | 2-1/2" | 36" | NW 63 ISO-MF flange |
| BT-250-36 | 2-1/2" | 36" | 2-1/2" OD tube |
| BC-250-48 | 2-1/2" | 48" | 4-1/2" OD MET-SEAL® |
| BI-250-48 | 2-1/2" | 48" | NW 63 ISO-MF flange |
| BT-250-48 | 2-1/2" | 48" | 2-1/2" OD tube |
| BC-250-60 | 2-1/2" | 60" | 4-1/2" OD MET-SEAL® |
| BI-250-60 | 2-1/2" | 60" | NW 63 ISO-MF flange |
| BT-250-60 | 2-1/2" | 60" | 2-1/2" OD tube |
| BC-300-6 | 3" | 6" | 4-5/8" OD MET-SEAL |
| BI-300-6 | 3" | 6" | NW 80 ISO-MF flange |
| BT-300-6 | 3" | 6" | 3" OD tube |
| KSH-7880-9.8 | 3" | 9.8" | NW 80 ISO-MF flange |
| BC-300-12 | 3" | 12" | 4-5/8" OD MET-SEAL |
| BI-300-12 | 3" | 12" | NW 80 ISO-MF flange |
| BT-300-12 | 3" | 12" | 3" OD tube |
| BI-300-18 | 3" | 18" | NW 80 ISO-MF flange |
| KSH-7880-19.7 | 3" | 19.7" | NW 80 ISO-MF flange |
| BC-300-24 | 3" | 24" | 4-5/8" OD MET-SEAL® |
| BI-300-24 | 3" | 24" | NW 80 ISO-MF flange |
| BT-300-24 | 3" | 24" | 3" OD tube |
| BC-300-36 | 3" | 36" | 4-5/8" OD MET-SEAL® |
| BI-300-36 | 3" | 36" | NW 80 ISO-MF flange |
| BT-300-36 | 3" | 36" | 3" OD tube |
| BC-300-48 | 3" | 48" | 4-5/8" OD MET-SEAL® |
| BI-300-48 | 3" | 48" | NW 80 ISO-MF flange |
| BT-300-48 | 3" | 48" | 3" OD tube |
| BC-300-60 | 3" | 60" | 4-5/8" OD MET-SEAL® |
| BI-300-60 | 3" | 60" | NW 80 ISO-MF flange |
| BT-300-60 | 3" | 60" | 3" OD tube |
Add option code to prefix of part number.
| DESCRIPTION | OPTION CODE |
|---|---|
| Flexible Hose Connector with Metal Braid Sheathing | S |
