| PART NUMBER | HOSE I.D. | LENGTH | DESCRIPTION |
|---|---|---|---|
| BK-100-3.94 | 1" | 3.94" | NW 25 flange |
| BK-100-6 | 1" | 6" | NW 25 flange |
| BC-100-6 | 1" | 6" | 2-1/8" MET-SEAL® |
| BQ-100-6 | 1" | 6" | Quick connect |
| BT-100-6 | 1" | 6" | 1" OD tube |
| KSH-5325 | 1" | 9.84" | NW 25 flange |
| BK-100-12 | 1" | 12" | NW 25 flange |
| BC-100-12 | 1" | 12" | 2-1/8" MET-SEAL® |
| BQ-100-12 | 1" | 12" | Quick connect |
| BT-100-12 | 1" | 12" | 1" OD tube |
| BK-100-18 | 1" | 18" | NW 25 flange |
| KSH-5425 | 1" | 19.69" | NW 25 flange |
| BK-100-20.27 | 1" | 20.27" | NW 25 flange |
| BK-100-24 | 1" | 24" | NW 25 flange |
| BC-100-24 | 1" | 24" | 2-1/8" MET-SEAL® |
| BQ-100-24 | 1" | 24" | Quick connect |
| BT-100-24 | 1" | 24" | 1" OD tube |
| BK-100-36 | 1" | 36" | NW 25 flange |
| BC-100-36 | 1" | 36" | 2-1/8" MET-SEAL |
| BQ-100-36 | 1" | 36" | Quick connect |
| BT-100-36 | 1" | 36" | 1" OD tube |
| KSH-5525 | 1" | 39.4" | NW 25 flange |
| BK-100-40.27 | 1" | 40.27" | NW 25 flange |
| BK-100-48 | 1" | 48" | NW 25 flange |
| BC-100-48 | 1" | 48" | 2-1/8" MET-SEAL® |
| BQ-100-48 | 1" | 48" | Quick connect |
| BT-100-48 | 1" | 48" | 1" OD tube |
| BK-100-60 | 1" | 60" | NW 25 flange |
| BC-100-60 | 1" | 60" | 2-1/8" MET-SEAL® |
| BQ-100-60 | 1" | 60" | Quick connect |
| BT-100-60 | 1" | 60" | 1" OD tube |

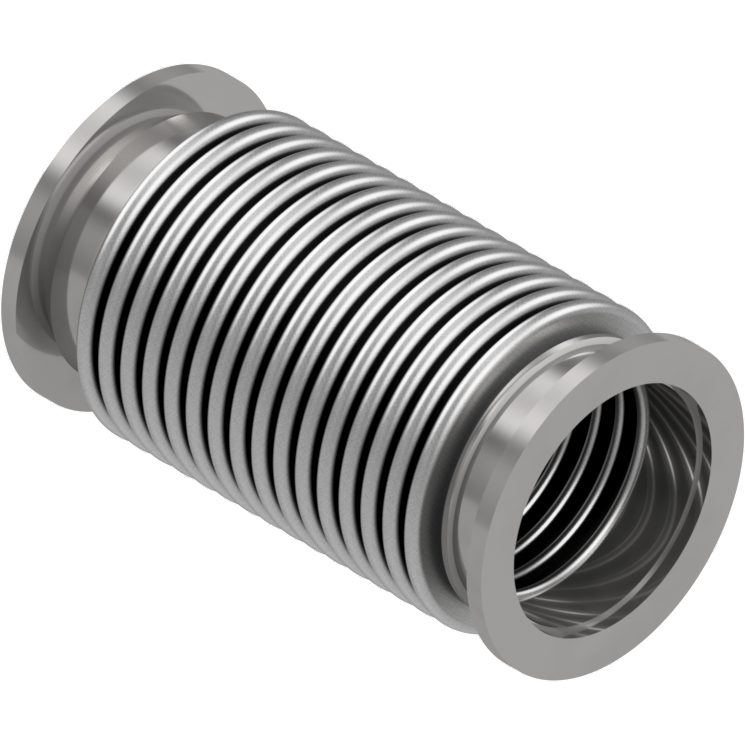

| BK-150-3.94 | 1-1/2" | 3.94" | NW 40 flange |
| BK-150-6 | 1-1/2" | 6" | NW 40 flange |
| BC-150-6 | 1-1/2" | 6" | 2-3/4" MET-SEAL |
| BQ-150-6 | 1-1/2" | 6" | Quick connect |
| BT-150-6 | 1-1/2" | 6" | 1-1/2" OD tube |
| KSH-5340 | 1-1/2" | 9.84" | NW 40 flange |
| BK-150-10.28 | 1-1/2" | 10.28" | NW 40 flange |
| BK-150-12 | 1-1/2" | 12" | NW 40 flange |
| BC-150-12 | 1-1/2" | 12" | 2-3/4" MET-SEAL® |
| BQ-150-12 | 1-1/2" | 12" | Quick connect |
| BT-150-12 | 1-1/2" | 12" | 1-1/2" OD tube |
| BK-150-18 | 1-1/2" | 18" | NW 40 flange |
| KSH-5440 | 1-1/2" | 19.69" | NW 40 flange |
| BK-150-20.28 | 1-1/2" | 20.28" | NW 40 flange |
Add option code to prefix of part number.
| DESCRIPTION | OPTION CODE |
|---|---|
| Flexible Hose Connector with Metal Braid Sheathing | S |
