| PART NUMBER | HOSE I.D. | LENGTH | DESCRIPTION |
|---|---|---|---|
| KH-025-MVC-3.5 | 1/4” | 3-1/2” | 1/4” Male VCR® |

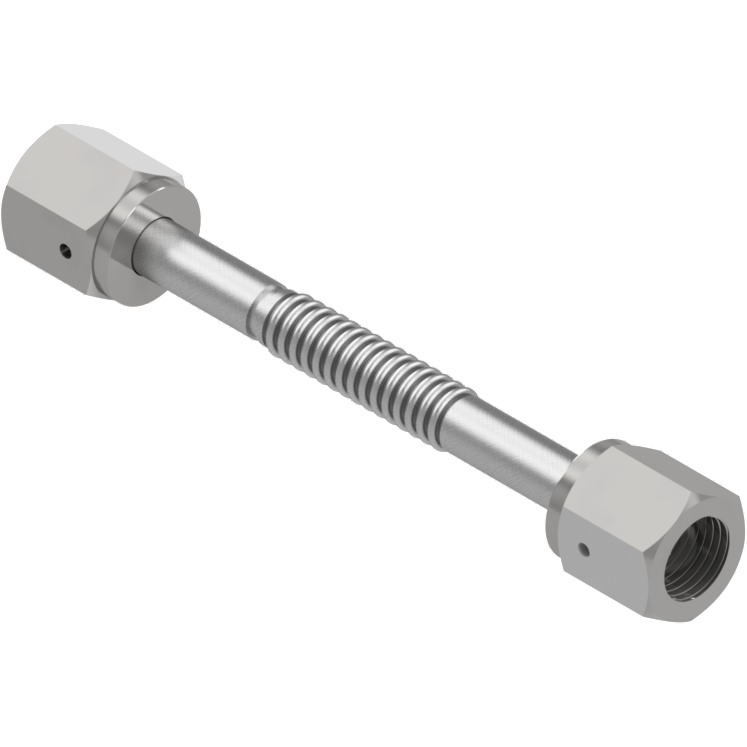

| KH-025-FVC-3.5 | 1/4” | 3-1/2” | 1/4” Female VCR® |
| KH-025-MVC-6 | 1/4” | 6" | 1/4” Male VCR® |
| KH-025-FVC-6 | 1/4” | 6" | 1/4” Female VCR® |
| KH-025-MVC-12 | 1/4” | 12" | 1/4” Male VCR® |
| KH-025-FVC-12 | 1/4” | 12" | 1/4” Female VCR® |
| KH-025-MVC-24 | 1/4” | 24" | 1/4” Male VCR® |
| KH-025-FVC-24 | 1/4” | 24" | 1/4” Female VCR® |
| KH-025-MVC-36 | 1/4” | 36" | 1/4” Male VCR® |
| KH-025-FVC-36 | 1/4” | 36" | 1/4” Female VCR® |
| BK-75-3.94 | 3/4” | 3.94" | NW 16 flange |
| BK-75-6 | 3/4” | 6" | NW 16 flange |
| BC-75-6 | 3/4” | 6" | Mini MET-SEAL® |
| BQ-75-6 | 3/4” | 6" | Quick connect |
| BT-75-6 | 3/4” | 6" | 3/4” OD tube |
| KSH-5316 | 3/4” | 9.84" | NW 16 flange |
| BK-75-10.23 | 3/4” | 10.23" | NW 16 flange |
| BK-75-12 | 3/4” | 12" | NW 16 flange |
| BC-75-12 | 3/4” | 12" | Mini MET-SEAL® |
| BQ-75-12 | 3/4” | 12" | Quick connect |
| BT-75-12 | 3/4” | 12" | 3/4” OD tube |
| BC-75-18 | 3/4” | 18" | Mini MET-SEAL® |
| KSH-5416 | 3/4” | 19.69" | NW 16 flange |
| BK-75-20.23 | 3/4” | 20.23" | NW 16 flange |
| BK-75-24 | 3/4” | 24" | NW 16 flange |
| BC-75-24 | 3/4” | 24" | Mini MET-SEAL® |
| BQ-75-24 | 3/4” | 24" | Quick connect |
| BT-75-24 | 3/4” | 24" | 3/4” OD tube |
| BK-75-36 | 3/4” | 36" | NW 16 flange |
| BC-75-36 | 3/4” | 36" | Mini MET-SEAL |
| BQ-75-36 | 3/4” | 36" | Quick connect |
| BT-75-36 | 3/4” | 36" | 3/4” OD tube |
| KSH-5516 | 3/4” | 39.4" | NW 16 flange |
| BK-75-40.23 | 3/4” | 40.23" | NW 16 flange |
| BK-75-48 | 3/4” | 48" | NW 16 flange |
| BC-75-48 | 3/4” | 48" | Mini MET-SEAL® |
| BQ-75-48 | 3/4” | 48" | Quick connect |
| BT-75-48 | 3/4” | 48" | 3/4” OD tube |
| BK-75-60 | 3/4” | 60" | NW 16 flange |
| BC-75-60 | 3/4” | 60" | Mini MET-SEAL |
| BQ-75-60 | 3/4” | 60" | Quick connect |
| BT-75-60 | 3/4” | 60" | 3/4” OD tube |
| BC-75-72 | 3/4” | 72" | Mini MET-SEAL® |
Add option code to prefix of part number.
| DESCRIPTION | OPTION CODE |
|---|---|
| Flexible Hose Connector with Metal Braid Sheathing | S |
