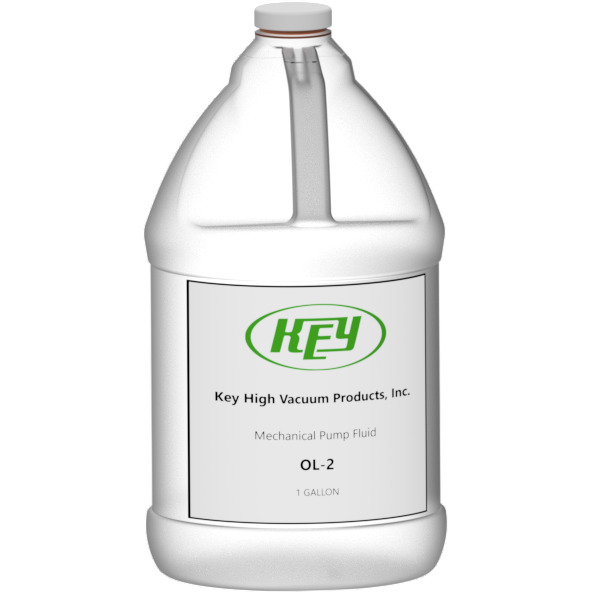

OL Series mechanical pump fluid is a distilled hydrocarbon fluid developed for all types of mechanical vacuum pumps. This fluid performs especially well in direct drive pumps. It has excellent resistance to oxidation and gum formation.
| SPECIFICATIONS | |
|---|---|
| Vapor Pressure | 8 x 10-5 Torr |
| Pour Point | 4.5°F |
| Flash Point | 450°F |
| Viscosity @ 100°F | 47.7 |
| Viscosity @ 130°F | 23.6 |
| Viscosity @ 210°F | 6.5 |
| Specific Gravity 25°C/25°C | .869 |
| PART NUMBER | DESCRIPTION |
|---|---|
| OL-1 | 1 Quart |
| OL-2 | 1 Gallon |
| OL-3 | 5 Gallons |
| OL-4 | 55 Gallons |
Octoil is a highly distilled synthetic ester fluid designed for use in diffusion pumps where pressures of 10-7 torr are required. It has become a standard fluid in diffusion pump leak detectors and mass spectrometers.
| SPECIFICATIONS | |
|---|---|
| Color | Clear |
| Viscosity @ 40°C | 52cST |
| Specific Gravity | 0.913 |
| Flash Point (COC) | 288°C / 550°F |
| Flash Point | 209°C / 409°F |
| Fire Point | 248°C / 248°F |
| Boiling Point °C @ .01 torr | 141 |
| Ultimate Vacuum, torr untrapped | 3 x 10-7 |
| Ultimate Vacuum, torr trapped | 5 x 10-8 |
| PART NUMBER | DESCRIPTION |
|---|---|
| OCTOIL-100 | 100 cc |
| OCTOIL-500 | 500 cc |
| OCTOIL-1 | 1 gallon |
