High Current Feedthrough - Model HCF-101
- Ceramic insulated
- 2-3/4" O.D. MET-SEAL flange
| MODEL HCF-101 SPECIFICATIONS | |
|---|---|
| Conductor | 3/4” OFHC® copper rod |
| Current Rating | 600 Amps |
| Voltage Rating | 3 KV |
| Temperature Range | -150°C to 450°C |
Medium Current Feedthroughs - Series CF-102
- Ceramic insulated
- 1.33" and 2-3/4" MET-SEAL flanges
- Available with one (Model CF-102-1), two (Model CF-102-2), three (Model CF-102-3) and four (Model CF-102-4) conductors
- Single conductor is also available with 1.33" O.D., Mini-flange (Model CF-102-133)
| SERIES CF-102 SPECIFICATIONS | |
|---|---|
| Conductor | 1/4” OFHC® copper rod |
| Current Rating | 150 Amps |
| Voltage Rating | 5 KV |
| Temperature Range | -150°C to 450°C |
Model CF-102-1
Model CF-102-2
Model CF-102-3

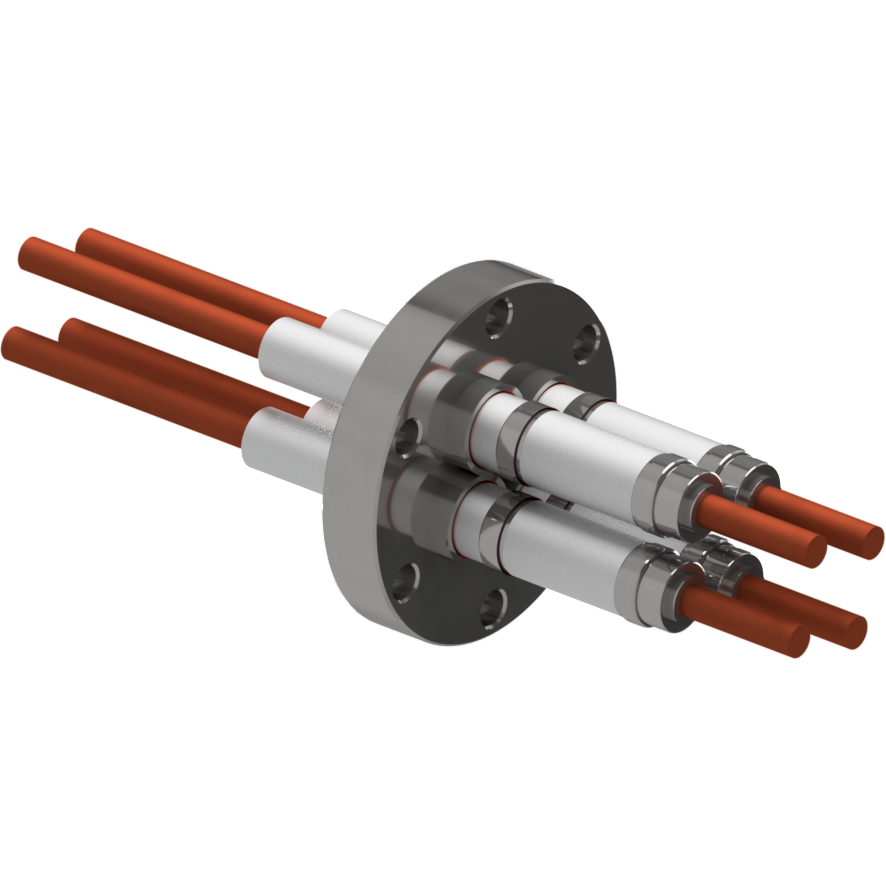

Model CF-102-4
Model CF-102-133
