SAT Series traps use a high-conductance cartridge, either OFHC® Copper wool or stainless-steel wool. The large surface area of these wools offers high trapping efficiency. Key High Vacuum recommends changing the element every six months for maximum performance.
SAT Series traps do not require a bakeout, are shipped complete with a cartridge, and are ready for immediate use. Standard traps are shipped with OFHC® Copper Wool. If stainless steel wool is required, add "-SS" to the part number's suffix. These traps are offered with tube ends, ISO-KF, ISO-MF, and Met-Seal flanges, allowing easy installation with existing equipment.
Assimilation Traps Right Angle
| PART NUMBER | PORT STYLE | A | B | C |
|---|---|---|---|---|
| SAT-75-A | 3/4” OD tube | 5-1/2" | 4-5/8" | 3" |
| SAT-16-A | NW 16 | 5-3/4" | 4-5/8" | 3" |
| SAT-75-A-CF | 1-1/3" OD MET-SEAL | 6-1/8" | 4-5/8" | 3" |
| SAT-100-A | 1" OD tube | 5-1/2" | 4-5/8" | 3" |
| SAT-25-A | NW 25 | 5-3/4" | 4-5/8" | 3" |
| SAT-100-A-CF | 2-3/4" OD MET-SEAL | 5-3/4" | 4-5/8" | 3" |
| SAT-150-A | 1-1/2" OD tube | 5-3/4" | 4-5/8" | 4" |

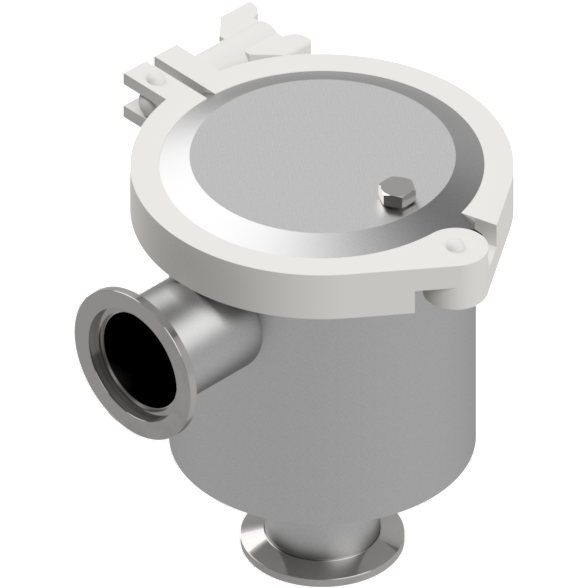

| SAT-40-A | NW 40 | 6" | 4-5/8" | 4" |
| SAT-150-A-CF | 2-3/4" OD MET-SEAL | 6" | 4-5/8" | 4" |
| SAT-200-A | 2" OD tube | 8-1/8" | 6-5/8" | 6" |
| SAT-50-A | NW 50 | 8-1/2" | 6-5/8" | 6" |
| SAT-200-A-CF | 3-3/8" OD MET-SEAL | 8-1/2" | 6-5/8" | 6" |
| SAT-250-A | 2-1/2" OD tube | 8-1/2" | 7" | 6" |
| SAT-63-A | NW 63 | 8-1/2" | 7" | 6" |
| SAT-250-A-CF | 4-1/2" OD MET-SEAL | 8-1/2" | 7" | 6" |
| SAT-300-A | 3" OD tube | 8-1/2" | 7" | 6" |
| SAT-80-A | NW 80 | 8-1/2" | 7" | 6" |
| SAT-300-A-CF | 4-5/8" OD MET-SEAL | 8-1/2" | 7" | 6" |
| SAT-400-A | 4" OD tube | 8-1/2" | 7" | 6" |
| SAT-NW100-A | NW 100 | 8-1/2" | 7" | 6" |
| SAT-400-A-CF | 6" OD MET-SEAL | 8-1/2" | 7" | 6" |
| SAT-258-A | 2-1/2" OD tube | 11-1/2" | 10" | 8" |
| SAT-638-A | NW 80 | 11-1/2" | 10" | 8" |
| SAT-258-A-CF | 4-1/2" OD MET-SEAL | 11-1/2" | 10" | 8" |
| SAT-308-A | 3" OD tube | 11-1/2" | 10" | 8" |
| SAT-808-A | NW 80 | 11-1/2" | 10" | 8" |
| SAT-308-A-CF | 4-5/8" OD MET-SEAL | 11-1/2" | 10" | 8" |
| SAT-408-A | 4" OD tube | 11-1/2" | 10" | 8" |
| SAT-NW108-A | NW 100 | 11-1/2" | 10" | 8" |
| SAT-408-A-CF | 6" OD MET-SEAL | 11-1/2" | 10" | 8" |
| SAT-608-A | 6" OD tube | 11-1/2" | 10" | 8" |
| SAT-160-A | NW 160 | 11-1/2" | 10" | 8" |
| SAT-600-A-CF | 8" OD MET-SEAL | 11-1/2" | 10" | 8" |
Assimilation Traps Replacement Filter Elements
| PART NUMBER | TRAP BODIES | MEDIA |
|---|---|---|
| RE-SAT-16 | 3" OD | Copper |
| RE-SAT-16-SS | 3" OD | Stainless Steel |
| RE-SAT-150 | 4" OD | Copper |
| RE-SAT-150-SS | 4" OD | Stainless Steel |
| RE-SAT-200 | 6" OD | Copper |
| RE-SAT-200-SS | 6" OD | Stainless Steel |
| RE-SAT-800 | 8" OD | Copper |
| RE-SAT-800-SS | 8" OD | Stainless Steel |
Product information is subject to change without notice. Product images may include options or accessories not included with the base model.
