The media typically used in our CFT Series traps is OFHC® copper wool, held in place by stainless steel screens. These screens are recessed to allow maximum conductance. Using CFT Series traps will result in a cleaner system and allow longer intervals before service is required. Stainless steel wool can be provided by adding "-SS" to the suffix of the part number. CFT Series traps do not require bakeouts; it is replaced once the trap becomes saturated. Install the trap as close as possible to the chamber/pump for prolonged trap life. Key High Vacuum recommends replacing the trap annually.
| PART NUMBER | PORT STYLE | A | B | C |
|---|---|---|---|---|
| CFT-75 | 3/4” OD tube | .75 | 4.00 | 4.50 |
| CFT-75-2-K | NW 16 | .75 | 4.00 | 4.50 |
| CFT-75-2-MS | 1-1/3" OD MET-SEAL | .75 | 4.00 | 4.50 |
| CFT-100 | 1" OD tube | 1.00 | 4.00 | 4.50 |

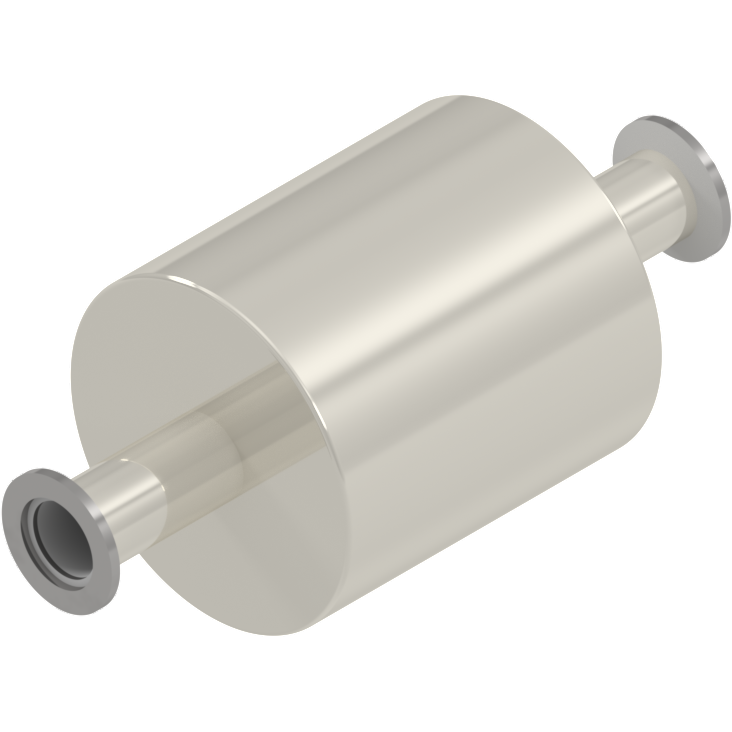

| CFT-100-2-K | NW 25 | 1.00 | 4.00 | 4.50 |
| CFT-100-2-MS | 2-1/8" OD MET-SEAL | 1.00 | 4.00 | 4.50 |
| CFT-150 | 1-1/2" OD tube | 1.50 | 4.00 | 4.50 |
| CFT-150-2-K | NW 40 | 1.50 | 4.00 | 4.50 |
| CFT-150-2-MS | 2-3/4" OD MET-SEAL | 1.50 | 4.00 | 4.50 |
| CFT-200 | 2" OD tube | 2.00 | 4.00 | 4.50 |
| CFT-200-2-K | NW 50 | 2.00 | 4.00 | 4.50 |
| CFT-200-2-MS | 3-3/8" OD MET-SEAL | 2.00 | 4.00 | 4.50 |
| CFT-250 | 2-1/2” OD tube | 2.50 | 4.00 | 4.50 |
| CFT-250-2-K | NW 63 | 2.50 | 4.00 | 4.50 |
| CFT-250-2-MS | 4-1/2" OD MET-SEAL | 2.50 | 4.00 | 4.50 |
| CFT-300 | 3" OD tube | 3.00 | 4.00 | 4.50 |
| CFT-300-2-K | NW 80 | 3.00 | 4.00 | 4.50 |
| CFT-300-2-MS | 4-5/8" OD MET-SEAL | 3.00 | 4.00 | 4.50 |
| CFT-400 | 4" OD tube | 4.00 | 6.00 | 4.50 |
| CFT-400-2-K | NW 100 | 4.00 | 6.00 | 4.50 |
| CFT-400-2-MS | 6" OD MET-SEAL | 4.00 | 6.00 | 4.50 |
Product information is subject to change without notice. Product images may include options or accessories not included with the base model.
