The nitrogen dewar acts as a pump, lowering the system's base pressure. Liquid nitrogen has a temperature of -321°F. Filling the dewar will achieve an operating temperature of -300°F (approximately). The band clamp design of the housing allows easy removal of the liquid nitrogen dewar without removing the trap itself from the foreline.
Isolation valves should always be used between any capture-type trap and the chamber. Close the Isolation valve for the duration of the regen cycle. This will prevent warming gases from migrating back into the chamber. The benefits of Key High's LNT Series traps are cleaner chambers, lower base pressures, and extended pump life cycle. This will prevent warming gases from migrating back into the chamber. The benefits of Key High's LNT Series traps are cleaner chambers, lower base pressures, and extended pump life.
LNT SERIES 4" Inline LN2 Refrigerant Traps
| PART NUMBER | PORT STYLE |
|---|---|
| LNT-4-75 | 3/4” OD tube |
| LNT-4-75-K | NW 16 |
| LNT-4-75-CF | 1-1/3" OD MET-SEAL |
| LNT-4-100 | 1" OD tube |
| LNT-4-100-K | NW 25 |
| LNT-4-100-CF | 2-3/4" OD MET-SEAL |
| LNT-4-150 | 1-1/2" OD tube |
| LNT-4-150-K | NW 40 |
| LNT-4-150-CF | 2-3/4" OD MET-SEAL |

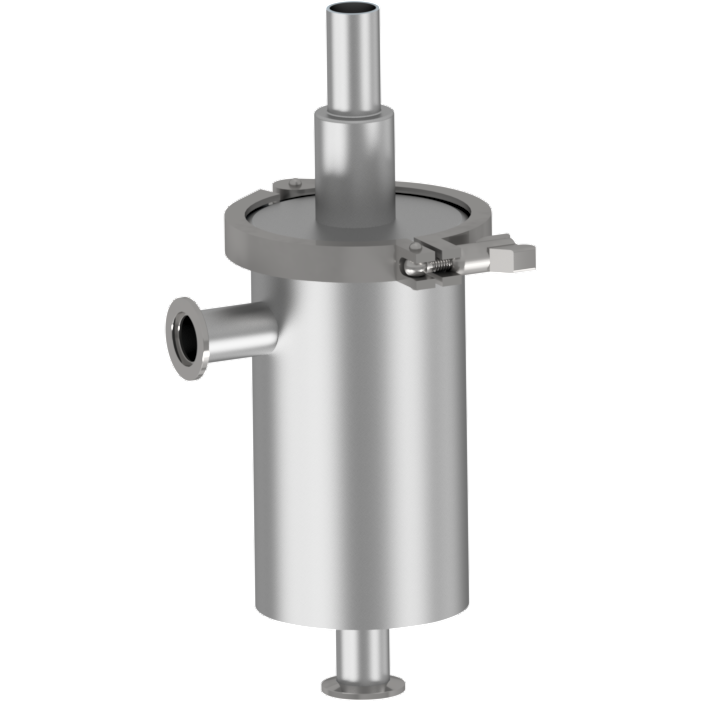

4" Right Angle LN2 Refrigerant Traps
| PART NUMBER | PORT STYLE | X |
|---|---|---|
| LNTA-4-75 | 3/4” OD tube | 5.50 |
| LNTA-4-75-K | NW 16 | 5.50 |
| LNTA-4-75-CF | 1-1/3" OD MET-SEAL | 5.50 |
| LNTA-4-100 | 1" OD tube | 5.40 |
| LNTA-4-100-K | NW 25 | 5.40 |
| LNTA-4-100-CF | 2-3/4" OD MET-SEAL | 5.40 |
| LNTA-4-150 | 1-1/2" OD tube | 5.40 |
| LNTA-4-150-K | NW 40 | 5.40 |
| LNTA-4-150-CF | 2-3/4" OD MET-SEAL | 5.40 |
