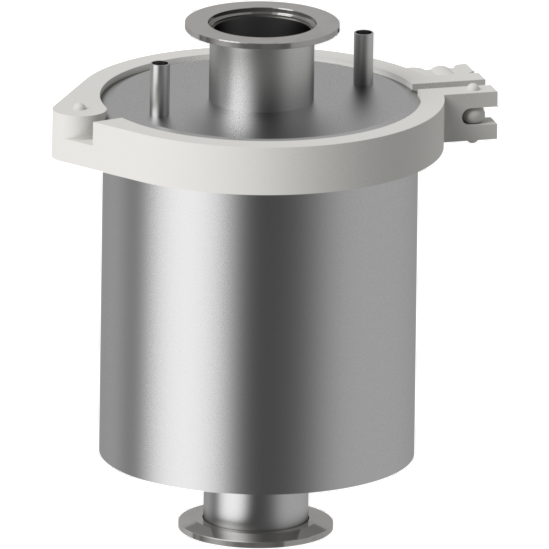

The WCT Series traps use a chilled water supply which should be supplied at 40psi. The chilled coils will draw in condensable gas vapors and solidify them. Key High's water-cooled traps have a stainless-steel sieve material which is placed between the cooling coils which increases the trapping surface area. This gives the WCT Traps a 10X greater performance rating.
| PART NUMBER | PORT STYLE |
|---|---|
| WCT-4.5-150 | 1-1/2" OD tube |
| WCT-4.5-150-K | NW 40 |
| WCT-4.5-150-CF | 2-3/4" OD MET-SEAL |
| WCT-4.5-200 | 2" OD tube |
| WCT-4.5-200-K | NW 50 |
| WCT-4.5-200-CF | 3-3/8" OD MET-SEAL |
| WCT-4.5-200-ASA | 5" OD ASA flange |
| PART NUMBER | PORT STYLE |
|---|---|
| WCTA-4.5-150 | 1-1/2" OD tube |
| WCTA-4.5-150-K | NW 40 |
| WCTA-4.5-150-CF | 2-3/4" OD MET-SEAL |
| WCTA-4.5-200 | 2" OD tube |
| WCTA-4.5-200-K | NW 50 |
| WCTA-4.5-200-CF | 3-3/8" OD MET-SEAL |
| WCTA-4.5-200-ASA | 5" OD ASA flange |
