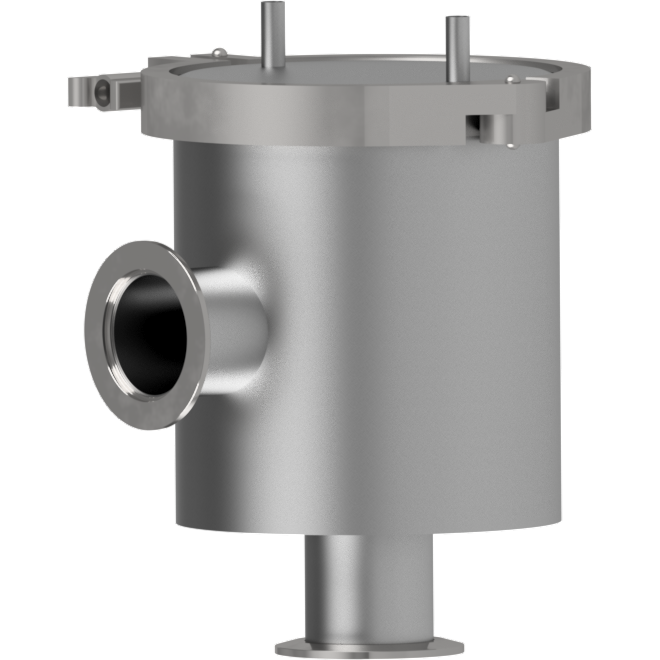

WCTA-6-200-K

Water Cooled Traps 6" & 8" Inline & Right Angle

WCT Series water-cooled traps offer an extremely effective method for cooling the incoming high-temperature gas stream before it can enter the backing pump, condense, and contaminate the pump. WCT Series traps increase tool uptime and extend maintenance intervals.

The WCT Series traps use a chilled water supply, which should be supplied at 40psi. The chilled coils will draw in condensable gas vapors and solidify them. Key High's water-cooled traps have a stainless-steel sieve material placed between the cooling coils, increasing the trapping surface area. This gives the WCT Traps a 10X greater performance rating.
  • Two-piece Band Clamp design for easy cleaning
  • Available with Right Angle and Inline Port Configuration
  • Stainless Steel 304 construction
  • Viton® Bonnet
  • FNPT drain ports available





wct series 6" & 8" Inline Water-Cooled Traps

wct series 6" & 8" Inline Water-Cooled Traps

wct series 6" & 8" Inline Water-Cooled Traps


PART NUMBER PORT STYLE X Y
WCT-6-150 1-1/2" OD tube 6" 7.00
WCT-6-150-K NW 40 6" 7.00
WCT-6-150-CF 2-3/4" OD MET-SEAL 6" 7.00
WCT-6-200 2" OD tube 6" 7.00
WCT-6-200-K NW 50 6" 7.00
WCT-6-200-CF 3-3/8" OD MET-SEAL 6" 7.00
WCT-6-200-ASA 5" OD ASA flange 6" 7.00
WCT-6-250 2-1/2" OD tube 6" 7.00
WCT-6-250-ISO NW 63 6" 7.00
WCT-6-250-CF 4-1/2" OD MET-SEAL 6" 7.00
WCT-6-250-ASA 5" OD ASA flange 6" 7.00
WCT-6-300 3" OD tube 6" 7.00
WCT-6-300-ISO NW 80 6" 7.00
WCT-6-300-CF 4-5/8" OD MET-SEAL 6" 7.00
WCT-6-300-ASA 6" OD ASA flange 6" 7.00
WCT-8-400 4" OD tube 8" 10.00
WCT-8-400-ISO NW 100 8" 10.00
WCT-8-400-CF 6" OD MET-SEAL 8" 10.00
WCT-8-400-ASA 7-1/2” OD ASA flange 8" 10.00





wcta series 6" & 8" Right Angle Water-Cooled Traps

wcta series 6" & 8" Right Angle Water-Cooled Traps

wcta series 6" & 8" Right Angle Water-Cooled Traps


PART NUMBER PORT STYLE X Y Z
WCTA-6-150 1-1/2" OD tube 6.00 7.00 4.50
WCTA-6-150-K NW 40 6.00 7.00 4.50
WCTA-6-150-CF 2-3/4" OD MET-SEAL 6.00 7.00 4.50
WCTA-6-200 2" OD tube 6.00 7.00 4.50
WCTA-6-200-K NW 50 6.00 7.00 4.50
WCTA-6-200-CF 3-3/8" OD MET-SEAL 6.00 7.00 4.50
WCTA-6-200-ASA 5" OD ASA flange 6.00 7.00 4.50
WCTA-6-250 2-1/2" OD tube 6.00 7.00 4.50
WCTA-6-250-ISO NW 63 6.00 7.00 4.50
WCTA-6-250-CF 4-1/2" OD MET-SEAL 6.00 7.00 4.50
WCTA-6-250-ASA 5" OD ASA flange 6.00 7.00 4.50
WCTA-6-300 3" OD tube 6.00 7.00 4.50
WCTA-6-300-ISO NW 80 6.00 7.00 4.50
WCTA-6-300-CF 4-5/8" OD MET-SEAL 6.00 7.00 4.50
WCTA-6-300-ASA 6" OD ASA flange 6.00 7.00 4.50
WCTA-8-400 4" OD tube 8.00 10.00 6.50
WCTA-8-400-ISO NW 100 8.00 10.00 6.50
WCTA-8-400-CF 6" OD MET-SEAL 8.00 10.00 6.50
WCTA-8-400-ASA 7-1/2” OD ASA flange 8.00 10.00 6.50

Product information is subject to change without notice. Product images may include options or accessories not included with the base model.
