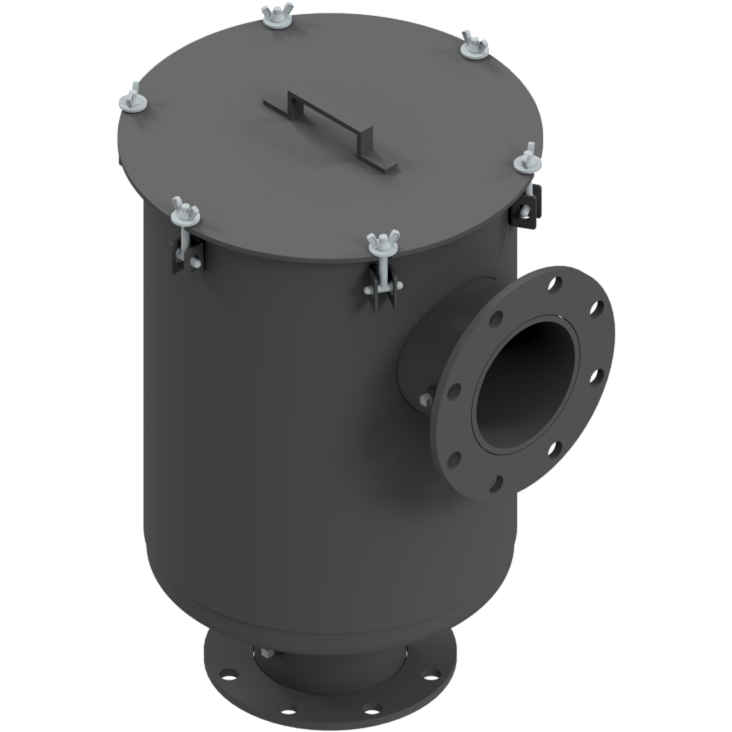

LPTA Series Inlet Traps
LPTA Series Inlet Traps feature right angle mounting arrangement, with ASA flanges for straightforward mounting, using ordinary hardware. Units are of steel construction, with a baked enamel finish, and are capable of withstanding hot air and oil mists. The filter itself incorporates a foam polyurethane "pre-filter" prior to the actual pleated, five (5) micron, polyester cartridge. This arrangement allows higher dirt carrying capacity (50%), thereby extending service intervals, as well as increasing uptime. Heavy duty "T" bolts allowing quick access for maintenance cycles, and ¼" female NPT ports are located on the inlet / outlet ports, allowing the use of gauges should the need arise.
| PART NUMBER | ASA PORT | A | B | C | D | E | SCFM RATING |
|---|---|---|---|---|---|---|---|
| LPTA-4 | 9" OD | 27-1/8" | 9" | 14" | 18-1/2" | 15" | 520 |
| LPTA-6 | 11" OD | 29-1/8" | 12" | 18-/2" | 20-1/2" | 15" | 1100 |
| LPTA-8 | 13-1/2" OD | 38" | 14" | 22-1/2" | 25-1/2" | 20" | 1800 |
Replacement Polyester Cartridges
| PART NUMBER | USE WITH |
|---|---|
| RF-4 | LPTA-4 |
| RF-6 | LPTA-6 |
| RF-8 | LPTA-8 |
Product information is subject to change without notice. Product images may include options or accessories not included with the base model.
