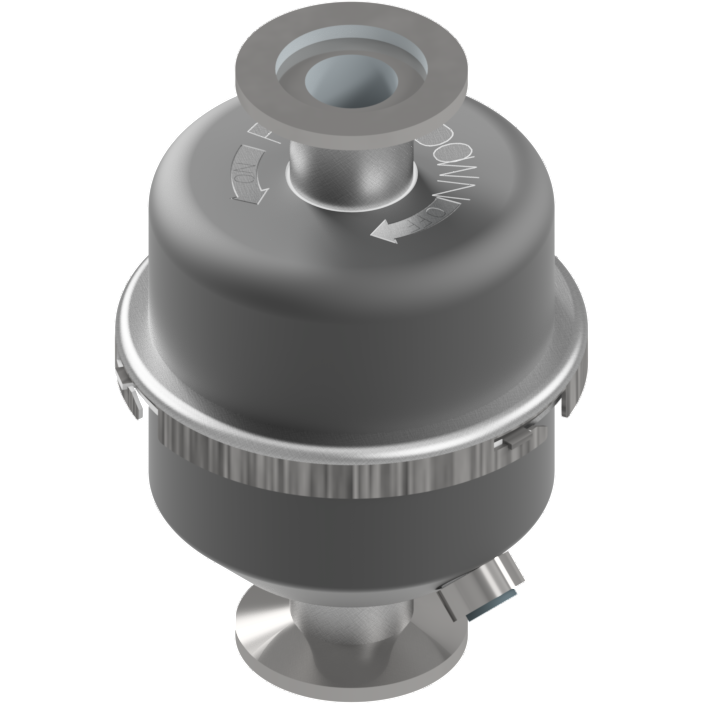

ILME Series Oil Mist Eliminators
ILME Series Oil Mist Eliminators feature inline mounting, standard NW mounting flanges, constructed from steel that has a baked enamel finish. ILME Series Oil Mist Eliminators have a built in safety valve, which in the event of an over pressure situation (½ bar or more) the safety valve releases, protecting the pump. All ILME Series Oil Mist Eliminators are two-piece designs and have 1/8" female NPT drain plugs.
| PART NUMBER | PORT STYLE | A | B | C | D | CFM |
|---|---|---|---|---|---|---|
| ILME-16 | NW 16 | 4-5/15" | 7/8" | 3-1/4" | 7/8" | 10 |
| ILME-25 | NW 25 | 7-3/8" | 7/8" | 5-1/4" | 7/8" | 20 |
Replacement Fiberglass Cartridges for ILME Series Oil Mist Eliminators
| PART NUMBER | USE WITH |
|---|---|
| RF-ILME-16 | ILME-16 |
| RF-ILME-25 | ILME-25 |
SAME Series Oil Mist Eliminators
SAME Series Oil Mist Eliminators are a standoff type mount that is intended for inert gas applications where no volatile organic compounds are used. SAME Series filters feature NW style or Welch style mounts, minimizing hardware usage and stand off heights. Units are constructed from steel that has been nickel-plated. Filter replacement is a simple thumbscrew arrangement
| PART NUMBER | PORT STYLE | A | B | C | CFM |
|---|---|---|---|---|---|
| SAME-1 | 3/4"-20 thread | 3-1/4" | 1" | 2-1/2" | 4 |
| SAME-2 | 1"-20 thread | 5" | 7/8" | 2-1/2" | 7 |
| SAME-3 | 1-3/4"-20 thread | 8-7/8" | 1-3/4" | 5-1/8" | 24 |
| SAME-NW16 | NW 16 | 4-1/2" | 7/8" | 2-1/2" | 4.5 |
| SAME-NW25 | NW 25 | 9-1/4" | 2-1/8" | 5-1/8" | 24 |
| SAME-NW40 | NW 40 | 9-1/4" | 2-1/8" | 10-1/4" | 55 |
Replacement Fiberglass Cartridges for SAME Series Oil Mist Eliminators
| PART NUMBER | USE WITH |
|---|---|
| RF-SAME-1 | SAME-1 |
| RF-SAME-2 | SAME-2 |
| RF-SAME-3 | SAME-3 |
| RF-SAME-NW16 | SAME-NW16 |
| RF-SAME-NW25 | SAME-NW25 |
| RF-SAME-NW40 | SAME-NW40 |
