180° U-BEND Radius Elbow
| PART NUMBER | TUBE OD | WALL | A |
|---|---|---|---|
| EL50-180SS | .50 | .065 | .75 |
| EL75-180SS | .75 | .065 | 1.12 |
| EL100-180SS | 1.00 | .065 | 1.50 |
| EL150-180SS | 1.50 | .065 | 2.25 |
| EL200-180SS | 2.00 | .065 | 3.00 |
| EL300-180SS | 3.00 | .065 | 4.50 |
| EL400-180SS | 4.00 | .083 | 6.00 |
Tee
| PART NUMBER | TUBE OD | WALL | A |
|---|---|---|---|
| T50-SS | .50 | .065 | .75 |
| T75-SS | .75 | .065 | 1.88 |
| T100-SS | 1.00 | .065 | 1.88 |
| T150-SS | 1.50 | .065 | 2.25 |
| T200-SS | 2.00 | .065 | 3.00 |
| T250-SS | 2.50 | .065 | 3.00 |
| T300-SS | 3.00 | .065 | 3.25 |
| T400-SS | 4.00 | .083 | 3.88 |
| T500-SS | 5.00 | .083 | 4.25 |
| T600-SS | 6.00 | .083 | 5.50 |
Reducer Tee
| PART NUMBER | ARM OD | LEG OD | A | B |
|---|---|---|---|---|
| T100-50-SS | 1.00 | .50 | 1.88 | 1.50 |
| T100-75-SS | 1.00 | .75 | 1.88 | 2.00 |
| T150-50-SS | 1.50 | .50 | 2.25 | 1.75 |
| T150-75-SS | 1.50 | .75 | 2.25 | 2.25 |

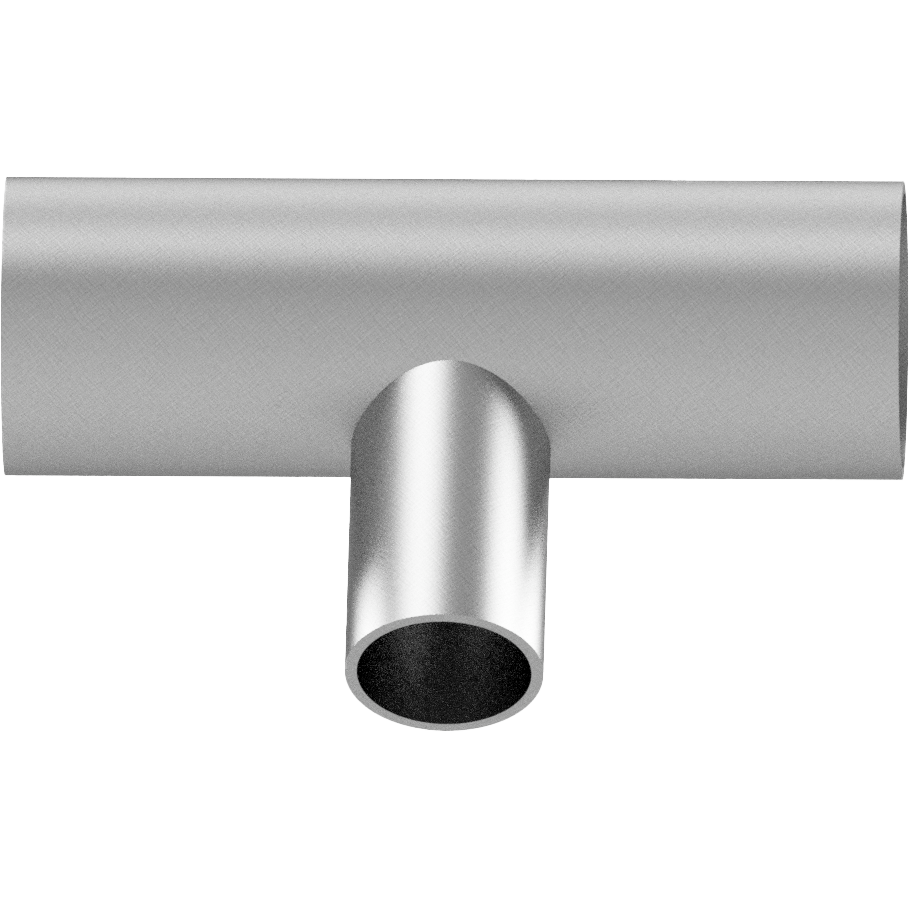

| T150-100-SS | 1.50 | 1.00 | 2.25 | 2.13 |
| T200-75-SS | 2.00 | .75 | 3.00 | 2.50 |
| T200-100-SS | 2.00 | 1.00 | 3.00 | 2.37 |
| T200-150-SS | 2.00 | 1.50 | 3.00 | 2.50 |
| T250-150-SS | 2.50 | 1.50 | 3.00 | 2.75 |
| T250-200-SS | 2.50 | 2.00 | 3.00 | 3.25 |
| T300-150-SS | 3.00 | 1.50 | 3.25 | 3.00 |
| T300-200-SS | 3.00 | 2.00 | 3.25 | 3.50 |
| T300-250-SS | 3.00 | 2.50 | 3.25 | 3.25 |
| T400-150-SS | 4.00 | 1.50 | 3.88 | 3.50 |
| T400-200-SS | 4.00 | 2.00 | 3.88 | 4.00 |
| T400-250-SS | 4.00 | 2.50 | 3.88 | 3.75 |
| T400-300-SS | 4.00 | 3.00 | 3.88 | 3.75 |
| T500-400-SS | 5.00 | 4.00 | 4.50 | 4.38 |
| T600-250-SS | 6.00 | 2.50 | 5.00 | 4.75 |
| T600-400-SS | 6.00 | 4.00 | 5.00 | 4.88 |
| T600-500-SS | 6.00 | 5.00 | 5.00 | 5.00 |
| T800-600-SS | 8.00 | 6.00 | 6.00 | 6.00 |
