Leak Detector 1-1/8” TO COMPRESSION FITTINGS
- 1-1/8" Interface commonly found on older mass spectrometers
- Ideal for production leak detection
- Fractional Tube OD Quick Seals
- Viton® Seal
| PART NUMBER | TUBE OD |
|---|---|
| LQ-06 | 1/16" |
| LQ-09 | 3/32" |
| LQ-12 | 1/8" |
| LQ-25 | 1/4” |
| LQ-31 | 5/16" |
| LQ-37 | 3/8" |
| LQ-50 | 1/2” |
| LQ-62 | 5/8" |
| LQ-75 | 3/4” |
| LQ-87 | 7/8" |
| LQ-100 | 1" |
| LQ-112 | 1-1/8" |
| LQ-125 | 1-1/4" |
| LQ-137 | 1-3/8" |
| LQ-150 | 1-1/2" |
| LQ-162 | 1-5/8" |
| LQ-175 | 1-3/4" |
| LQ-200 | 2" |
| LQ-212 | 2-1/8" |

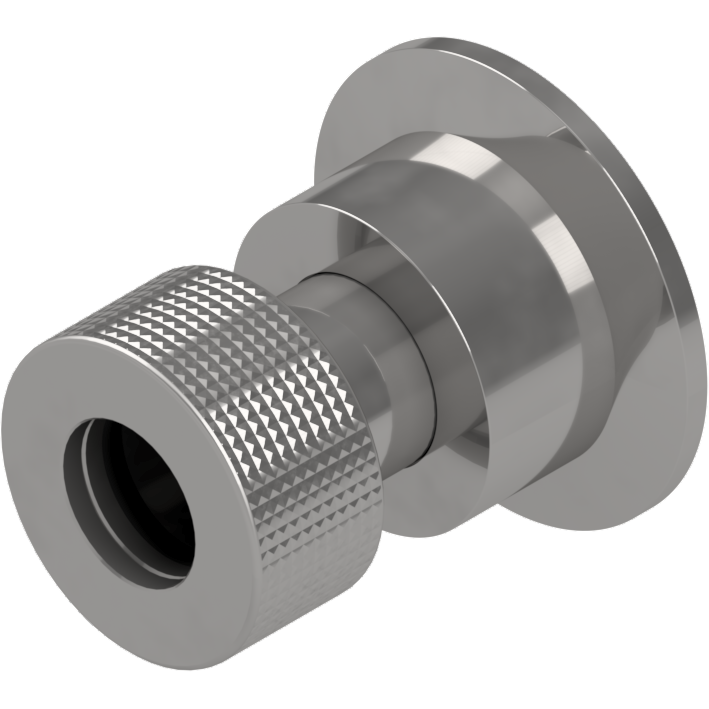

LEAK DETECTOR NW 40 TO COMPRESSION FITTINGS
- NW 40 Interface to mass spectrometer
- Ideal for production leak detection
- Fractional Tube OD Quick Seals
- Viton® Seal
| PART NUMBER | TUBE OD |
|---|---|
| LK-06 | 1/16" |
| LK-09 | 3/32" |
| LK-12 | 1/8" |
| LK-18 | 3/16" |
| LK-25 | 1/4” |
| LK-31 | 5/16" |
| LK-37 | 3/8" |
| LK-50 | 1/2” |
| LK-62 | 5/8" |
| LK-75 | 3/4” |
| LK-87 | 7/8" |
| LK-100 | 1" |
| LK-112 | 1-1/8" |
| LK-125 | 1-1/4" |
| LK-137 | 1-3/8" |
| LK-150 | 1-1/2" |
| LK-162 | 1-5/8" |
| LK-175 | 1-3/4" |
| LK-200 | 2" |
| LK-212 | 2-1/8" |
