Cap Seal Fittings Ordering Information
| PART NUMBER | BODY MATERIAL | TUBE OD | A | B | C |
|---|---|---|---|---|---|
| CS-06-AL | 6061 T6 | 1/16" | .072 | 5/8" | 1-1/8" |
| CS-06-BR | Brass | 1/16" | .072 | 5/8" | 1-1/8" |
| CS-06-SS | 304 SS | 1/16" | .072 | 5/8" | 1-1/8" |
| CS-09-AL | 6061 T6 | 3/32" | .103 | 5/8" | 1-1/8" |
| CS-09-BR | Brass | 3/32" | .103 | 5/8" | 1-1/8" |
| CS-09-SS | 304 SS | 3/32" | .103 | 5/8" | 1-1/8" |
| CS-12-AL | 6061 T6 | 1/8" | .135 | 5/8" | 1-1/8" |
| CS-12-BR | Brass | 1/8" | .135 | 5/8" | 1-1/8" |
| CS-12-SS | 304 SS | 1/8" | .135 | 5/8" | 1-1/8" |
| CS-18-AL | 6061 T6 | 3/16" | .197 | 5/8" | 1-1/8" |
| CS-18-BR | Brass | 3/16" | .197 | 5/8" | 1-1/8" |
| CS-18-SS | 304 SS | 3/16" | .197 | 5/8" | 1-1/8" |
| CS-25-AL | 6061 T6 | 1/4” | .260 | 5/8" | 1-1/8" |
| CS-25-BR | Brass | 1/4” | .260 | 5/8" | 1-1/8" |
| CS-25-SS | 304 SS | 1/4” | .260 | 5/8" | 1-1/8" |
| CS-31-AL | 6061 T6 | 5/16" | .325 | 1" | 1-1/8" |
| CS-31-BR | Brass | 5/16" | .325 | 1" | 1-1/8" |
| CS-31-SS | 304 SS | 5/16" | .325 | 1" | 1-1/8" |
| CS-37-AL | 6061 T6 | 3/8" | .385 | 1" | 1-1/8" |
| CS-37-BR | Brass | 3/8" | .385 | 1" | 1-1/8" |
| CS-37-SS | 304 SS | 3/8" | .385 | 1" | 1-1/8" |
| CS-50-AL | 6061 T6 | 1/2” | .515 | 1-1/4" | 1-3/8" |
| CS-50-BR | Brass | 1/2” | .515 | 1-1/4" | 1-3/8" |
| CS-50-SS | 304 SS | 1/2” | .515 | 1-1/4" | 1-3/8" |
| CS-62-AL | 6061 T6 | 5/8" | .640 | 1-1/4" | 1-3/8" |
| CS-62-BR | Brass | 5/8" | .640 | 1-1/4" | 1-3/8" |
| CS-62-SS | 304 SS | 5/8" | .640 | 1-1/4" | 1-3/8" |

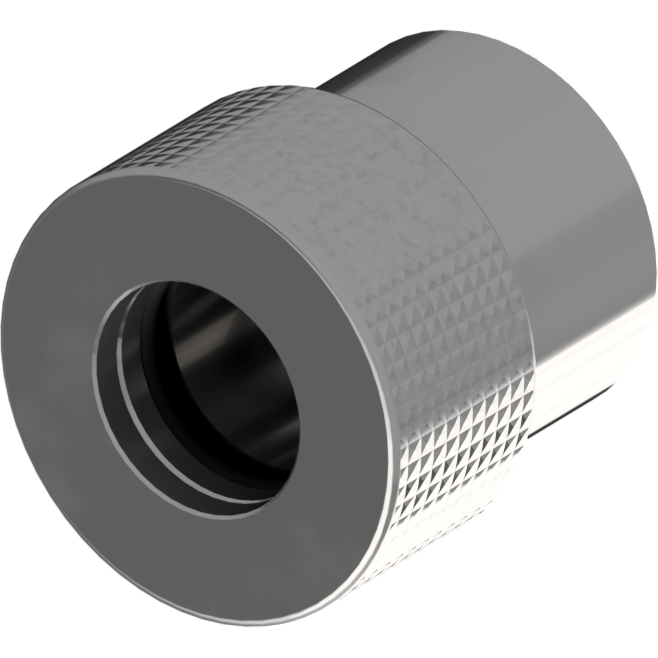

| CS-75-AL | 6061 T6 | 3/4” | .765 | 1-1/2" | 1-3/8" |
| CS-75-BR | Brass | 3/4” | .765 | 1-1/2" | 1-3/8" |
| CS-75-SS | 304 SS | 3/4” | .765 | 1-1/2" | 1-3/8" |
| CS-87-AL | 6061 T6 | 7/8" | .890 | 1-3/4" | 1-1/2" |
| CS-87-BR | Brass | 7/8" | .890 | 1-3/4" | 1-1/2" |
| CS-87-SS | 304 SS | 7/8" | .890 | 1-3/4" | 1-1/2" |
| CS-100-AL | 6061 T6 | 1" | 1.015 | 1-3/4" | 1-1/2" |
| CS-100-BR | Brass | 1" | 1.015 | 1-3/4" | 1-1/2" |
| CS-100-SS | 304 SS | 1" | 1.015 | 1-3/4" | 1-1/2" |
| CS-112-AL | 6061 T6 | 1-1/8" | 1.140 | 1-7/8" | 1-1/2" |
| CS-112-BR | Brass | 1-1/8" | 1.140 | 1-7/8" | 1-1/2" |
| CS-112-SS | 304 SS | 1-1/8" | 1.140 | 1-7/8" | 1-1/2" |
| CS-125-AL | 6061 T6 | 1-1/4" | 1.265 | 2" | 1-3/4" |
| CS-125-BR | Brass | 1-1/4" | 1.265 | 2" | 1-3/4" |
| CS-125-SS | 304 SS | 1-1/4" | 1.265 | 2" | 1-3/4" |
| CS-137-AL | 6061 T6 | 1-3/8" | 1.390 | 2-1/8" | 1-7/8" |
| CS-137-BR | Brass | 1-3/8" | 1.390 | 2-1/8" | 1-7/8" |
| CS-137-SS | 304 SS | 1-3/8" | 1.390 | 2-1/8" | 1-7/8" |
| CS-150-AL | 6061 T6 | 1-1/2" | 1.515 | 2-1/4" | 2" |
| CS-150-BR | Brass | 1-1/2" | 1.515 | 2-1/4" | 2" |
| CS-150-SS | 304 SS | 1-1/2" | 1.515 | 2-1/4" | 2" |
| CS-162-AL | 6061 T6 | 1-5/8" | 1.640 | 2-3/8" | 2-1/8" |
| CS-162-BR | Brass | 1-5/8" | 1.640 | 2-3/8" | 2-1/8" |
| CS-162-SS | 304 SS | 1-5/8" | 1.640 | 2-3/8" | 2-1/8" |
| CS-175-AL | 6061 T6 | 1-3/4" | 1.765 | 2-1/2" | 2-1/4" |
| CS-175-BR | Brass | 1-3/4" | 1.765 | 2-1/2" | 2-1/4" |
| CS-175-SS | 304 SS | 1-3/4" | 1.765 | 2-1/2" | 2-1/4" |
| CS-200-AL | 6061 T6 | 2" | 2.015 | 2-3/4" | 2-1/2" |
| CS-200-BR | Brass | 2" | 2.015 | 2-3/4" | 2-1/2" |
| CS-200-SS | 304 SS | 2" | 2.015 | 2-3/4" | 2-1/2" |
| CS-212-AL | 6061 T6 | 2-1/8" | 2.140 | 2-7/8" | 2-1/2" |
| CS-212-BR | Brass | 2-1/8" | 2.140 | 2-7/8" | 2-1/2" |
| CS-212-SS | 304 SS | 2-1/8" | 2.140 | 2-7/8" | 2-1/2" |
