CLF800-275-133


Met-Seal Cluster Flanges Zero Length 8" OD & 10" OD

  • 304 Stainless Steel Construction
  • Minimum footprint
  • Allows multiple feedthroughs, instruments to be mounted
  • Insert flanges have imperial threads

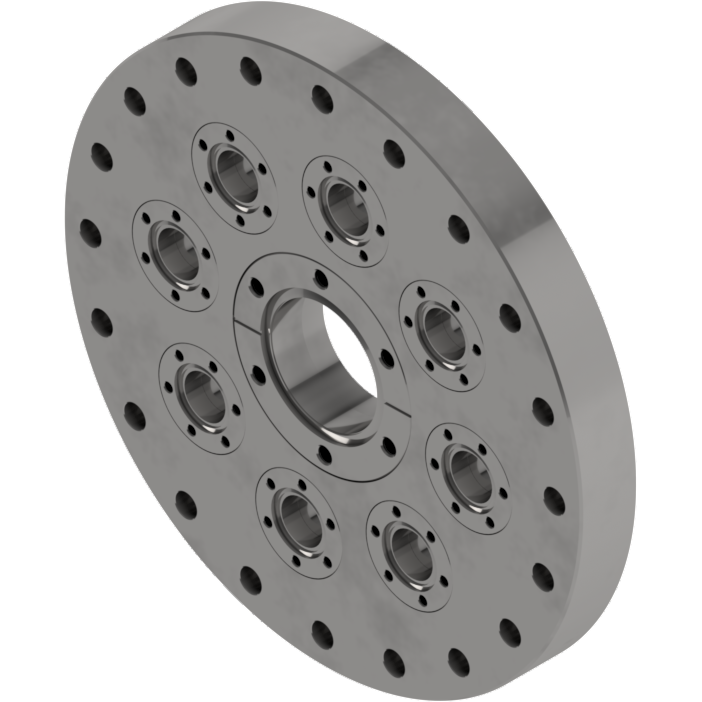

MET-SEAL Cluster Flanges Zero Length 8" OD with Mini Insert

MET-SEAL Cluster Flanges Zero Length 8" OD with Mini Insert

MET-SEAL Cluster Flanges Zero Length 8" OD with Mini Insert


PART NUMBER DESCRIPTION A
CLF800-275-133 8" OD base flange, 1 each 2-3/4" tapped insert 8 each tapped Mini inserts 4.562





MET-SEAL Cluster Flanges Zero Length 10" OD with Mini Insert

MET-SEAL Cluster Flanges Zero Length 10" OD with Mini Insert

MET-SEAL Cluster Flanges Zero Length 10" OD with Mini Insert


PART NUMBER DESCRIPTION A
CLF1000-275-133 10" OD base flange, 1 each 2-3/4" and 8 each Mini inserts 6.250





MET-SEAL Cluster Flanges Zero Length 10" OD with 2-3/4" OD Base Flange

MET-SEAL Cluster Flanges Zero Length 10" OD with 2-3/4" OD Base Flange

MET-SEAL Cluster Flanges Zero Length 10" OD with 2-3/4" OD Base Flange


PART NUMBER DESCRIPTION A
CLF1000-275 10" OD base flange, 5 each 2-3/4" tapped inserts 5.625

Product information is subject to change without notice. Product images may include options or accessories not included with the base model.
