CLF450-133


MET-SEAL Cluster Flanges 9 Port Angled, Zero Length 4-1/2" OD

  • 304 Stainless Steel Construction
  • Minimum footprint
  • Allows multiple feedthroughs, instruments to be mounted
  • Mass Spectrometer leak tested @ 1 x 10-10 std/cc sec He





MET-SEAL Cluster Flanges, 9 Ports, Angled

  • Angled Mini MET-SEAL 8 places, through holes
  • Oversized tube on 2-3/4" OD MET-SEAL
  • Electropolished assemblies

MET-SEAL Cluster Flanges, 9 Ports, Angled

MET-SEAL Cluster Flanges, 9 Ports, Angled


PART NUMBER BASE FLANGE A B C D
CF600-A8 6" OD MET-SEAL 5.97 2.61 .781 3.12
CF800-A8 8" OD MET-SEAL 7.97 3.03 .875 3.12





Zero Length MET-SEAL Cluster Flanges

  • Oversize bores on all flanges
  • Attach accessories for electrical, cooling, feedthroughs, gauges, etc.
  • Base flanges are through holes, insert flanges are tapped non-rotatable
  • Electropolished assemblies

Zero Length MET-SEAL Cluster Flanges

Zero Length MET-SEAL Cluster Flanges


PART NUMBER DESCRIPTION A

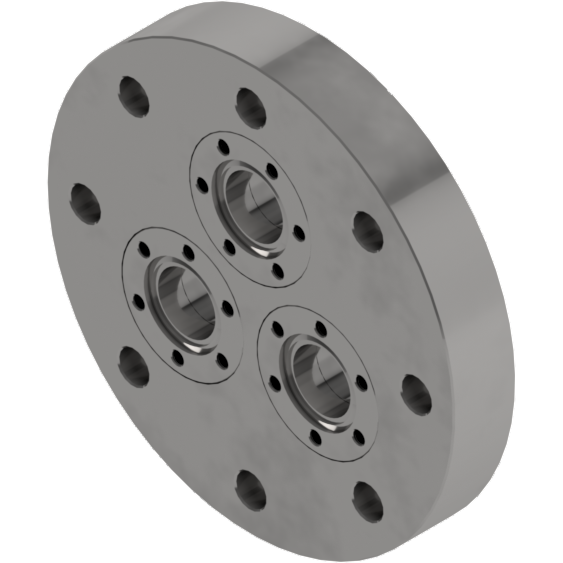

CLF450-133 4-1/2" OD base flange 3 each tapped Mini inserts 1.710

Product information is subject to change without notice. Product images may include options or accessories not included with the base model.
