| PART NUMBER | TUBE OD | NOMINAL FLANGE OD | A |
|---|---|---|---|
| T-075-MS | .75 | 1.33 | 1.50 |
| T-100-MS | 1.00 | 2.12 | 2.05 |

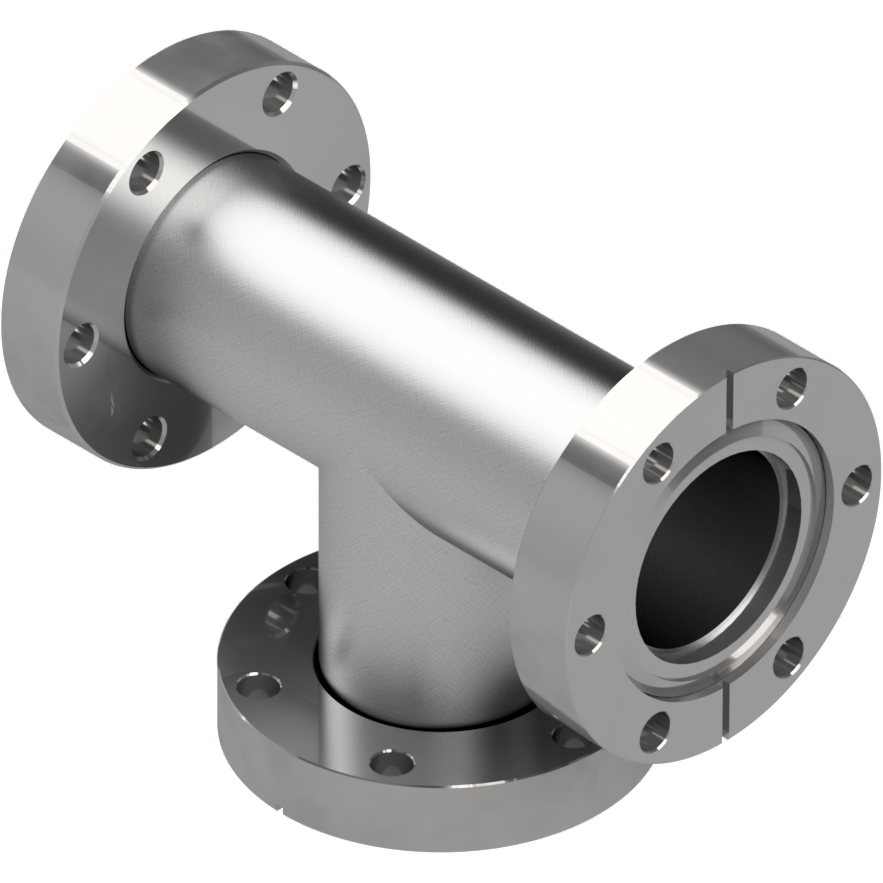

| T-150-MS | 1.50 | 2.74 | 2.46 |
| T-200-MS | 2.00 | 3.36 | 3.22 |
| T-250-MS | 2.50 | 4.47 | 3.38 |
| T-300-MS | 3.00 | 4.61 | 3.53 |
| T-400-MS | 4.00 | 5.97 | 4.32 |
| T-500-MS | 5.00 | 6.73 | 4.71 |
| T-600-MS | 6.00 | 7.97 | 5.50 |
| T-800-MS | 8.00 | 9.97 | 7.50 |
| PART NUMBER | A TUBE OD |
B TUBE OD |
FLANGE 1 & 2 NOMINAL OD |
FLANGE 3 NOMINAL OD |
C | D |
|---|---|---|---|---|---|---|
| RT-275-133 | 1.50 | .75 | 2.74 | 1.33 | 2.46 | 1.87 |
| RT-275-212 | 1.50 | 1.00 | 2.74 | 2.12 | 2.46 | 2.30 |
| RT-338-133 | 2.00 | .75 | 3.36 | 1.33 | 3.22 | 2.13 |
| RT-338-275 | 2.00 | 1.50 | 3.36 | 2.74 | 3.22 | 2.71 |
| RT-450-275 | 2.50 | 1.50 | 4.47 | 2.74 | 3.38 | 2.97 |
| RT-450-338 | 2.50 | 2.00 | 4.47 | 3.36 | 3.38 | 3.48 |
| RT-462-338 | 3.00 | 2.00 | 4.61 | 3.36 | 3.54 | 3.75 |
| RT-462-450 | 3.00 | 2.50 | 4.61 | 4.47 | 3.54 | 3.64 |
| RT-600-275 | 4.00 | 1.50 | 5.97 | 2.74 | 4.33 | 3.72 |
| RT-600-338 | 4.00 | 2.00 | 5.97 | 3.36 | 4.33 | 4.24 |
| RT-600-450 | 4.00 | 2.50 | 5.97 | 4.47 | 4.33 | 4.14 |
| RT-600-462 | 4.00 | 3.00 | 5.97 | 4.61 | 4.33 | 4.04 |
| RT-675-600 | 5.00 | 4.00 | 6.73 | 5.97 | 4.72 | 4.83 |
| RT-800-275 | 6.00 | 1.50 | 7.97 | 2.74 | 5.50 | 4.71 |
| RT-800-338 | 6.00 | 2.00 | 7.97 | 3.36 | 5.50 | 5.23 |
| RT-800-450 | 6.00 | 2.50 | 7.97 | 4.47 | 5.50 | 5.12 |
| RT-800-600 | 6.00 | 4.00 | 7.97 | 5.97 | 5.50 | 5.20 |
| RT-1000-800 | 8.00 | 6.00 | 9.97 | 7.97 | 7.50 | 6.50 |
