90° Radius Elbow
| PART NUMBER | TUBE OD | NOMINAL FLANGE OD | A |
|---|---|---|---|
| E-075-MS | .75 | 1.33 | 1.50 |
| E-100-MS | 1.00 | 2.12 | 2.04 |

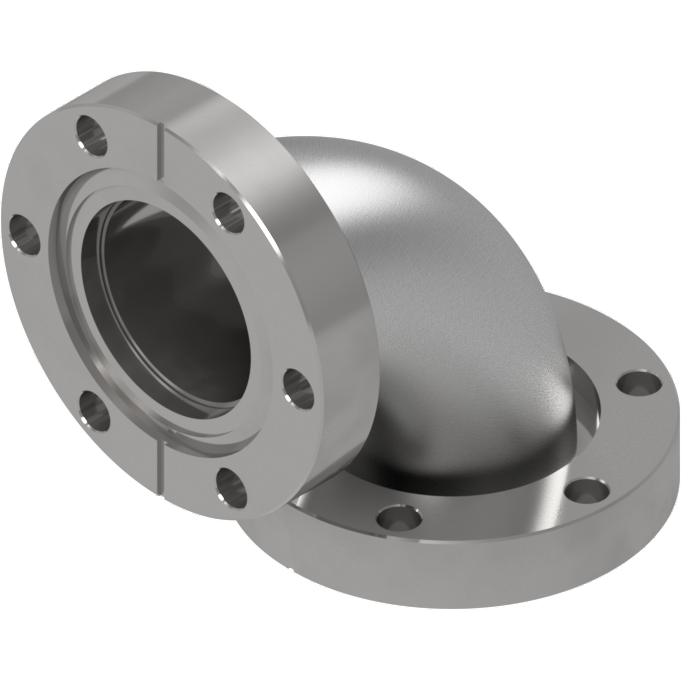

| E-150-MS | 1.50 | 2.74 | 2.46 |
| E-200-MS | 2.00 | 3.36 | 3.21 |
| E-250-MS | 2.50 | 4.47 | 4.03 |
| E-300-MS | 3.00 | 4.62 | 4.88 |
| E-400-MS | 4.00 | 5.97 | 6.44 |
| E-600-MS | 6.00 | 7.97 | 9.50 |
Both Flanges Rotatable
90° Mitered Elbow
| PART NUMBER | TUBE OD | NOMINAL FLANGE OD | A |
|---|---|---|---|
| ME-075-MS | .75 | 1.33 | 1.50 |
| ME-100-MS | 1.00 | 2.12 | 2.05 |
| ME-150-MS | 1.50 | 2.74 | 2.46 |
| ME-200-MS | 2.00 | 3.36 | 3.22 |
| ME-250-MS | 2.50 | 4.47 | 3.38 |
| ME-300-MS | 3.00 | 4.62 | 3.53 |
| ME-400-MS | 4.00 | 5.97 | 4.32 |
| ME-500-MS | 5.00 | 6.73 | 4.71 |
| ME-600-MS | 6.00 | 7.97 | 5.50 |
| ME-800-MS | 8.00 | 9.97 | 7.50 |
Both Flanges Rotatable
45° Radius Elbow
| PART NUMBER | TUBE OD | NOMINAL FLANGE OD | A |
|---|---|---|---|
| E45-075-MS | .75 | 1.33 | .93 |
| E45-100-MS | 1.00 | 2.12 | 1.13 |
| E45-150-MS | 1.50 | 2.74 | 1.74 |
| E45-200-MS | 2.00 | 3.36 | 2.06 |
| E45-250-MS | 2.50 | 4.47 | 3.37 |
| E45-300-MS | 3.00 | 4.61 | 3.96 |
| E45-400-MS | 4.00 | 5.97 | 5.21 |
Both Flanges Rotatable
