| PART NUMBER | A | B | C | D | E | F |
|---|---|---|---|---|---|---|

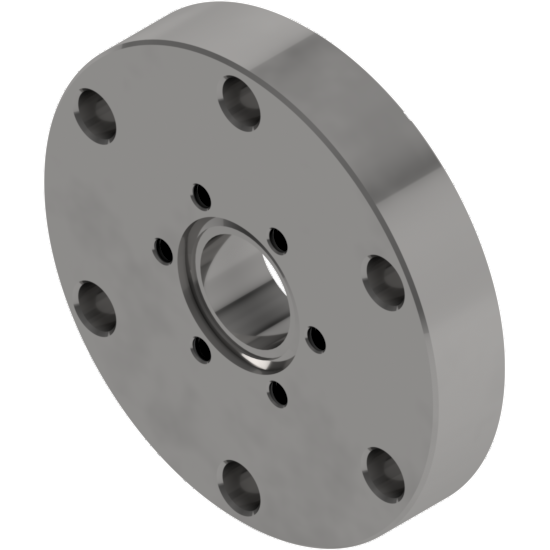

| ZLR-275-133 | 2-3/4" | 2.312 | 0.62 | 1.062 | 8-32 | .500 |
| ZLR-275-212 ★ | 2-3/4" | 2.312 | 0.62 | 1.625 | 1/4-28 | .500 |
| ZLR-338-133 | 3-3/8" | 2.850 | 0.62 | 1.062 | 8-32 | .687 |
| ZLR-338-212 | 3-3/8" | 2.850 | 1.00 | 1.625 | 1/4-28 | .687 |
| ZLR-338-275 ★ | 3-3/8" | 2.850 | 1.50 | 2.312 | 1/4-28 | .687 |
| ZLR-450-133 | 4-1/2" | 3.628 | 0.62 | 1.062 | 8-32 | .687 |
| ZLR-450-212 | 4-1/2" | 3.628 | 1.00 | 1.625 | 1/4-28 | .687 |
| ZLR-450-275 | 4-1/2" | 3.628 | 1.50 | 2.312 | 1/4-28 | .687 |
| ZLR-450-338 ★ | 4-1/2" | 3.628 | 2.00 | 2.850 | 5/16-24 | .687 |
| ZLR-462-133 | 4-5/8" | 4.030 | 0.62 | 1.062 | 8-32 | .812 |
| ZLR-462-212 | 4-5/8" | 4.030 | 1.00 | 1.625 | 1/4-28 | .812 |
| ZLR-462-275 | 4-5/8" | 4.030 | 1.50 | 2.312 | 1/4-28 | .812 |
| ZLR-462-338 | 4-5/8" | 4.030 | 2.00 | 2.850 | 5/16-24 | .812 |
| ZLR-600-133 | 6" | 5.128 | 0.62 | 1.062 | 8-32 | .781 |
| ZLR-600-275 | 6" | 5.128 | 1.50 | 2.312 | 1/4-28 | .781 |
| ZLR-600-338 | 6" | 5.128 | 2.00 | 2.850 | 5/16-24 | .781 |
| ZLR-600-450 | 6" | 5.128 | 2.50 | 3.628 | 5/16-24 | .781 |
| ZLR-600-462 | 6" | 5.128 | 3.00 | 4.030 | 5/16-24 | .781 |
| ZLR-675-133 | 6-3/4" | 5.969 | 0.62 | 1.062 | 8-32 | .844 |
| ZLR-675-212 | 6-3/4" | 5.969 | 1.00 | 1.625 | 1/4-28 | .844 |
| ZLR-675-275 | 6-3/4" | 5.969 | 1.50 | 2.312 | 1/4-28 | .844 |
| ZLR-675-338 | 6-3/4" | 5.969 | 2.00 | 2.850 | 5/16-24 | .844 |
| ZLR-675-450 | 6-3/4" | 5.969 | 2.50 | 3.628 | 5/16-24 | .844 |
| ZLR-675-462 | 6-3/4" | 5.969 | 3.00 | 4.030 | 5/16-24 | .844 |
| ZLR-675-600 ★ | 6-3/4" | 5.969 | 4.00 | 5.128 | 5/16-24 | .844 |
| ZLR-800-133 | 8" | 7.128 | 0.62 | 1.062 | 8-32 | .875 |
| ZLR-800-275 | 8" | 7.128 | 1.50 | 2.312 | 1/4-28 | .875 |
| ZLR-800-338 | 8" | 7.128 | 2.00 | 2.850 | 5/16-24 | .875 |
| ZLR-800-450 | 8" | 7.128 | 2.50 | 3.628 | 5/16-24 | .875 |
| ZLR-800-462 | 8" | 7.128 | 3.00 | 4.030 | 5/16-24 | .875 |
| ZLR-800-600 | 8" | 7.128 | 4.00 | 5.128 | 5/16-24 | .875 |
| ZLR-800-675 ★ | 8" | 7.128 | 5.00 | 5.969 | 5/16-24 | .875 |
| ZLR-1000-133 | 10" | 9.128 | 0.62 | 1.062 | 8-32 | .968 |
| ZLR-1000-212 | 10" | 9.128 | 1.00 | 1.625 | 1/4-28 | .968 |
| ZLR-1000-275 | 10" | 9.128 | 1.50 | 2.312 | 1/4-28 | .968 |
| ZLR-1000-338 | 10" | 9.128 | 2.00 | 2.850 | 5/16-24 | .968 |
| ZLR-1000-450 | 10" | 9.128 | 2.50 | 3.628 | 5/16-24 | .968 |
| ZLR-1000-462 | 10" | 9.128 | 3.00 | 4.030 | 5/16-24 | .968 |
| ZLR-1000-600 | 10" | 9.128 | 4.00 | 5.128 | 5/16-24 | .968 |
| ZLR-1000-675 | 10" | 9.128 | 5.00 | 5.969 | 5/16-24 | .968 |
| ZLR-1000-800 | 10" | 9.128 | 6.00 | 7.128 | 5/16-24 | .968 |
★ Tapped base flange
