MET-SEAL Double-sided Flanges

Double Sided Flanges

PART NUMBER	NOMINAL OD	A	B
MS133-000D	1-1/3”	Blank	.300
MS133-037D	1-1/3”	.375	.300
MS133-050D	1-1/3”	.505	.300
MS133-075D	1-1/3”	.630	.300
MS212-000D	2-1/8”	Blank	.470
MS212-075D	2-1/8”	.760	.470
MS212-100D	2-1/8”	1.010	.470

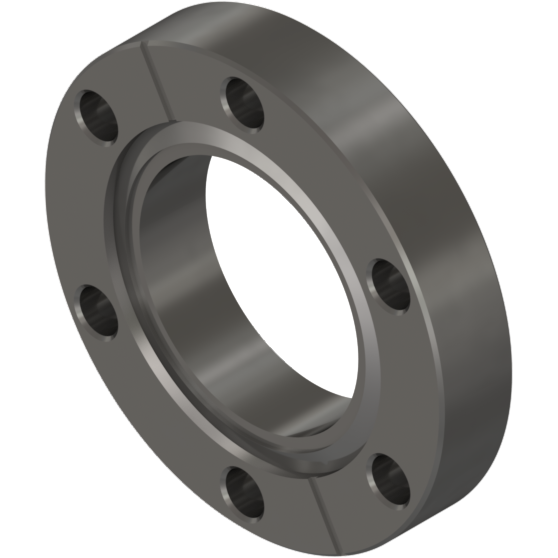

MS275-000D	2-3/4”	Blank	.500
MS275-025D	2-3/4”	.255	.500
MS275-050D	2-3/4”	.505	.500
MS275-075D	2-3/4”	.760	.500
MS275-100D	2-3/4”	1.010	.500
MS275-125D	2-3/4”	1.260	.500
MS275-150D	2-3/4”	1.510	.500
MS338-000D	3-3/8”	Blank	.687
MS338-150D	3-3/8”	1.510	.687
MS338-200D	3-3/8”	2.010	.687
MS450-000D	4-1/2”	Blank	.687
MS450-150D	4-1/2”	1.510	.687
MS450-200D	4-1/2”	2.010	.687
MS450-250D	4-1/2”	2.510	.687
MS462-000D	4-5/8”	Blank	.812
MS462-250D	4-5/8”	2.510	.812
MS462-300D	4-5/8”	3.010	.812
MS600-000D	6”	Blank	.781
MS600-400D	6”	4.010	.781
MS675-000D	6-3/4”	Blank	.844
MS675-400D	6-3/4”	4.010	.844
MS675-500D	6-3/4”	5.010	.844
MS800-000D	8”	Blank	.875
MS800-600D	8”	6.020	.875
MS1000-000D	10”	Blank	.968
MS1000-800D	10”	8.020	.968

Product information is subject to change without notice. Product images may include options or accessories not included with the base model.
