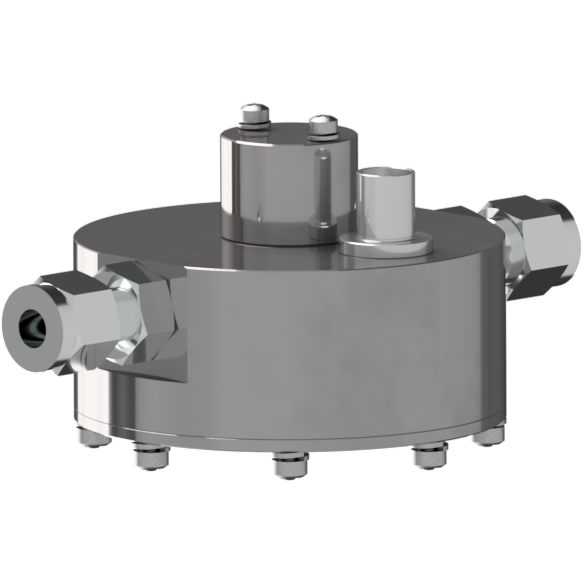

PEV-1

Piezoelectric Valves, PEV-1

Key High Vacuum Products Piezoelectric Gas Flow Valves control gas flows within a vacuum system. The PEV-1 is compact, responds in milliseconds, and delivers extremely accurate gas flows for PID pressure control applications.

Key High’s PEV-1 requires a 0-100 VDC input. The valve's threshold voltage is 20-30vdc, with a maximum voltage not exceeding 100vdc. The maximum inlet pressure should not exceed 50psig.

The PEV-1 is a fail-safe (close) valve.  In the event of a power loss, the PEV-1 will remain closed until power is restored.

All valves manufactured by Key High are leak tested using a helium mass spectrometer at 3 x 10-9 sccs, with a one-atmosphere differential and exhibit no measurable leak.

Features

  • Stainless Steel Construction
  • 0 to 525 sccm
  • 2 millisecond response time
  • No overshooting
  • ¼” Swagelok® or ¼” Male VCR® interface
  • Operating range +10° C to +60° C





PEV-1

PEV-1

PEV-1


PART NUMBER DESCRIPTION
PEV-1 Piezoelectric Valve 1/4" Swagelok® Fittings
PEV-1-VCR® Piezoelectric Valve 1/4" Male VCR's®
PEV-1-001 Replacement Viton® Seals
PEV-1-002 Inlet Filter 2 Micron
PEV-1-003 RG-188 Cable 10 Foot With One Mating Connector Only
PEV-1-004 1/4" FNPT Inlet Fitting & ½" OD Tube Outlet Fitting

Product information is subject to change without notice. Product images may include options or accessories not included with the base model.
