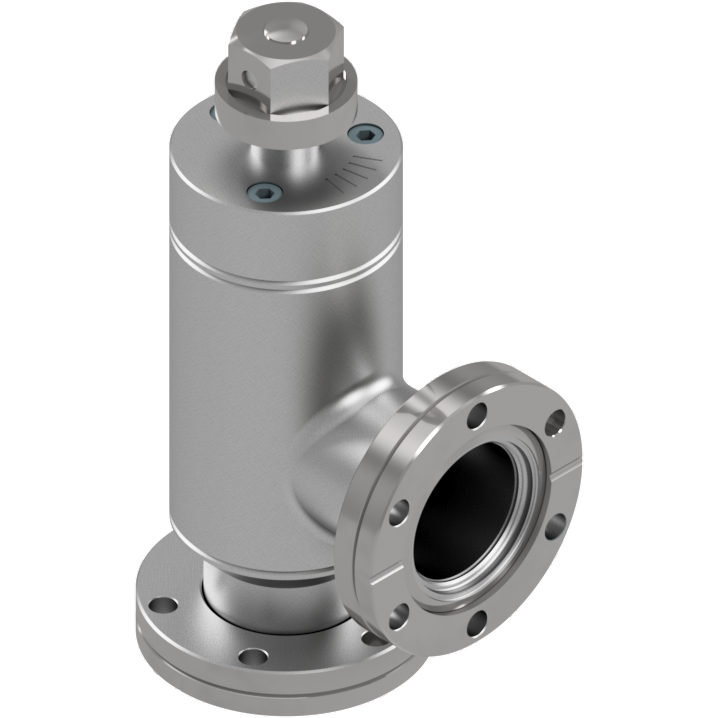

Bakeable All Metal UHV Valves
| PART NUMBER | A TUBE OD |
B | C | D OPEN |
CLOSED | E | F |
|---|---|---|---|---|---|---|---|
| BAV-75-F | 3/4” | 2.25 | 2-1/4 | 8" | 7-1/4" | 1.33" | 3/8" |
| BAV-150-F | 1-1/2" | 2.26 | 2-15/32 | 7" | 5-7/8" | 2-3/4" | 11/16" |
| BAV-250-F | 2-1/2” | 3.38 | 4.13" | 11.57" | 10.47" | 4-1/2" | 1-1/8" |
Torque
- BAV-75-F 10 ft/lbs (min) to 20 ft/lbs (max)
- BAV-150-F 20 ft/lbs (min) to 40 ft/lbs (max)
- BAV-250-F 20ft/lbs (min) to 60 ft/lbs (max)
Product information is subject to change without notice. Product images may include options or accessories not included with the base model.
