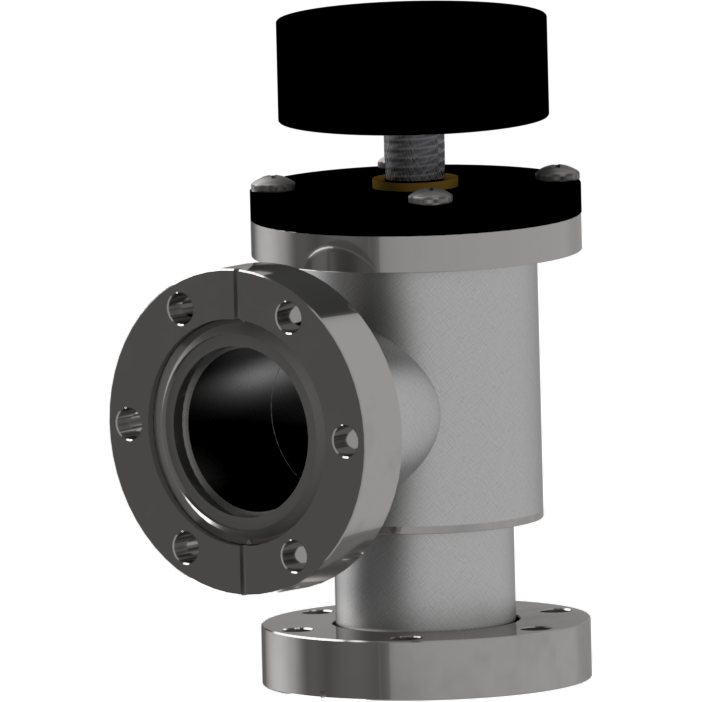

Right Angle Valves, Stainless Steel, Manual OFHC® Bonnet, Viton® Poppet
| PART NUMBER | TUBE OD | PORT STYLE | A | B | C | D | E |
|---|---|---|---|---|---|---|---|
| SA-37-N-C | 3/8" | Tube End | 4.37 | 1.50 | 1.50 | 2.00 | 3.38 |
| SA-37-N-MS-C | 3/8" | Mini MET-SEAL | 4.37 | 1.56 | 1.56 | 2.00 | 3.38 |
| SA-37-N-FVCR-C | 3/8" | 1/4" Female VCR® | 5.91 | 1.87 | 1.87 | 2.00 | 4.01 |
| SA-50-N-C | 1/2” | Tube End | 4.37 | 1.50 | 1.50 | 2.00 | 3.38 |
| SA-50-N-MS-C | 1/2” | Mini MET-SEAL | 4.37 | 1.56 | 1.56 | 2.00 | 3.38 |
| SA-75-N-C | 3/4” | Tube End | 4.50 | 2.00 | 2.00 | 2.00 | 3.53 |
| SA-75-N-MS-C | 3/4" | Mini MET-SEAL | 5.00 | 2.50 | 2.50 | 2.00 | 4.03 |
| SA-100-N-C | 1" | Tube End | 4.62 | 2.12 | 2.12 | 2.00 | 3.62 |
| SA-100-N-MS-C | 1" | 2-1/8" MET-SEAL | 4.80 | 2.42 | 2.42 | 2.00 | 3.79 |
| SA-150-N-C | 1-1/2" | Tube End | 5.43 | 2.25 | 2.25 | 2.75 | 4.04 |
| SA-150-N-MS-C | 1-1/2" | 2-3/4" MET-SEAL | 5.64 | 2.46 | 2.46 | 2.75 | 4.50 |
| SA-200-N-C | 2" | Tube End | 7.39 | 3.25 | 3.25 | 3.50 | 6.16 |
| SA-200-N-MS-C | 2" | 3-3/8" MET-SEAL | 7.62 | 3.47 | 3.47 | 3.50 | 6.39 |
| SA-250-N-C | 2-1/2" | Tube End | 10.80 | 3.25 | 3.25 | 4.00 | 7.75 |
| SA-250-N-MS-C | 2-1/2" | 4-1/2" MET-SEAL | 11.20 | 3.62 | 3.62 | 4.00 | 8.12 |
| SA-300-N-C | 3" | Tube End | 11.70 | 3.50 | 3.50 | 4.50 | 8.87 |
| SA-300-N-MS-C | 3" | Tube End | 11.98 | 3.78 | 3.78 | 4.50 | 9.15 |
Gasket Kits OFHC® Bonnet, Viton® Poppet
| PART NUMBER | FITS VALVE SERIES |
|---|---|
| OR-SA-100-N-C | 37,50,75,100 |
| OR-SA-150-N-C | 150 |
| OR-SA-200-N-C | 200 |
| OR-SA-250-N-C | 250 |
| OR-SA-300-N-C | 300 |
Manual Bellow Assemblies
| PART NUMBER | FITS VALVE SERIES |
|---|---|
| RS-B-100-N | 37,50,75,100 |
| RS-B-150-N | 150 |
| RS-B-200-N | 200 |
| RS-B-250-N | 250 |
| RS-B-300-N | 300 |
Product information is subject to change without notice. Product images may include options or accessories not included with the base model.
