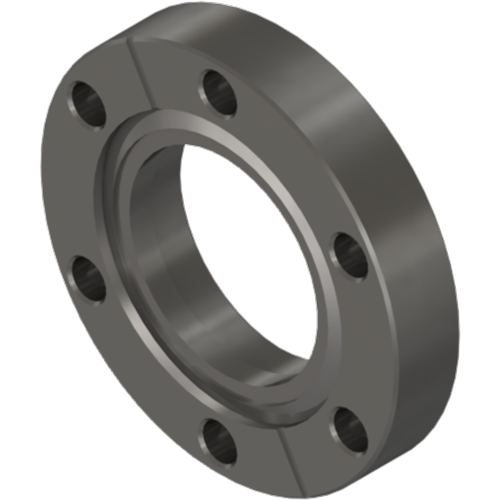

Non-Rotatable Flanges
| PART NUMBER | NOMINAL OD | A OD | B ID | C | D | E | F | BOLT HOLES | HOLES DIA |
|---|---|---|---|---|---|---|---|---|---|
| MS275-000N316 | 2-3/4" | 2.74 | Blank | - | .500 | - | 2.312 | 6 | .265 |
| MS275-100N316 | 2-3/4" | 2.74 | .938 | 1.010 | .500 | .209 | 2.312 | 6 | .265 |
| MS275-150N316 | 2-3/4" | 2.74 | 1.437 | 1.510 | .500 | .209 | 2.312 | 6 | .265 |
| MS450-000N316 | 4-1/2" | 4.47 | Blank | - | .750 | - | 3.628 | 8 | .332 |
| MS450-200N316 | 4-1/2" | 4.47 | 1.938 | 2.010 | .750 | .375 | 3.628 | 8 | .332 |
| MS450-250N316 | 4-1/2" | 4.47 | 2.437 | 2.510 | .750 | .375 | 3.628 | 8 | .332 |
| MS600-000N316 | 6" | 5.97 | Blank | - | .844 | - | 5.128 | 16 | .332 |
| MS600-400N316 | 6" | 5.97 | 3.910 | 4.010 | .844 | .437 | 5.128 | 16 | .332 |
| MS800-000N316 | 8" | 7.97 | Blank | - | .937 | - | 7.128 | 20 | .332 |
| MS800-600N316 | 8" | 7.97 | 5.875 | 6.020 | .937 | .500 | 7.128 | 20 | .332 |
| MS1000-000N316 | 10" | 9.97 | Blank | - | .968 | - | 9.128 | 24 | .332 |
| MS1000-800N316 | 10" | 9.97 | 7.875 | 8.020 | .968 | .500 | 9.128 | 24 | .332 |
Solid Nickel Gasket for Mini Met-Seal (Sold Individually)
| PART NUMBER | USE WITH |
|---|---|
| G-275-NI | 2-3/4" OD |
| G-338-NI | 3-3/8" OD |
| G-450-NI | 4-1/2" OD |
| G-600-NI | 6" OD |
| G-800-NI | 8" OD |
| G-1000-NI | 10" OD |
