Rotatable Flanges
| PART NUMBER |
NOMINAL OD |
A OD |
B ID |
C |
D |
E |
F |
BOLT HOLES |
HOLES DIA |
| MS275-000R316 |
2-3/4" |
2.74 |
Blank |
- |
.500 |
- |
2.312 |
6 |
.265 |
| MS275-100R316 |
2-3/4" |
2.74 |
.938 |
1.010 |
.500 |
.209 |
2.312 |
6 |
.265 |

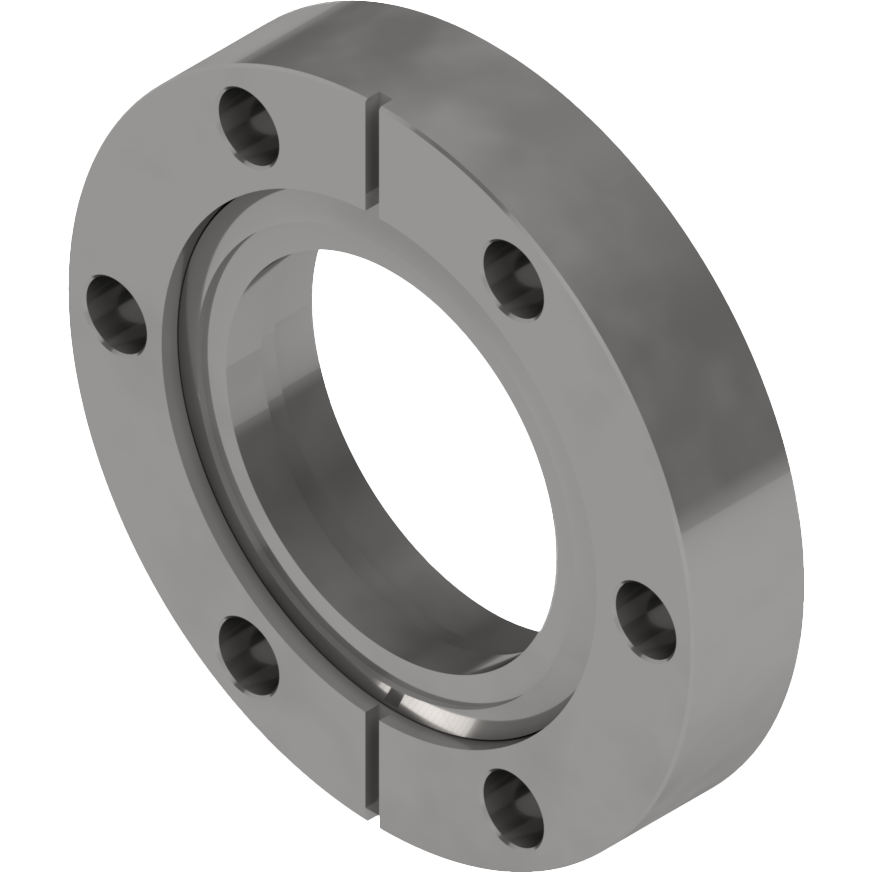

| MS275-150R316 |
2-3/4" |
2.74 |
1.437 |
1.510 |
.500 |
.209 |
2.312 |
6 |
.265 |
| MS450-000R316 |
4-1/2" |
4.47 |
Blank |
- |
.750 |
- |
3.628 |
8 |
.332 |
| MS450-200R316 |
4-1/2" |
4.47 |
1.938 |
2.010 |
.750 |
.375 |
3.628 |
8 |
.332 |
| MS450-250R316 |
4-1/2" |
4.47 |
2.437 |
2.510 |
.750 |
.375 |
3.628 |
8 |
.332 |
| MS600-000R316 |
6" |
5.97 |
Blank |
- |
.844 |
- |
5.128 |
16 |
.332 |
| MS600-400R316 |
6" |
5.97 |
3.910 |
4.010 |
.844 |
.437 |
5.128 |
16 |
.332 |
| MS800-000R316 |
8" |
7.97 |
Blank |
- |
.937 |
- |
7.128 |
20 |
.332 |
| MS800-600R316 |
8" |
7.97 |
5.875 |
6.020 |
.937 |
.500 |
7.128 |
20 |
.332 |
| MS1000-000R316 |
10" |
9.97 |
Blank |
- |
.968 |
- |
9.128 |
24 |
.332 |
| MS1000-800R316 |
10" |
9.97 |
7.875 |
8.020 |
.968 |
.500 |
9.128 |
24 |
.332 |
Solid Nickel Gasket for Mini Met-Seal (Sold Individually)
| PART NUMBER |
USE WITH |
| G-275-NI |
2-3/4" OD |
| G-338-NI |
3-3/8" OD |
| G-450-NI |
4-1/2" OD |
| G-600-NI |
6" OD |
| G-800-NI |
8" OD |
| G-1000-NI |
10" OD |
