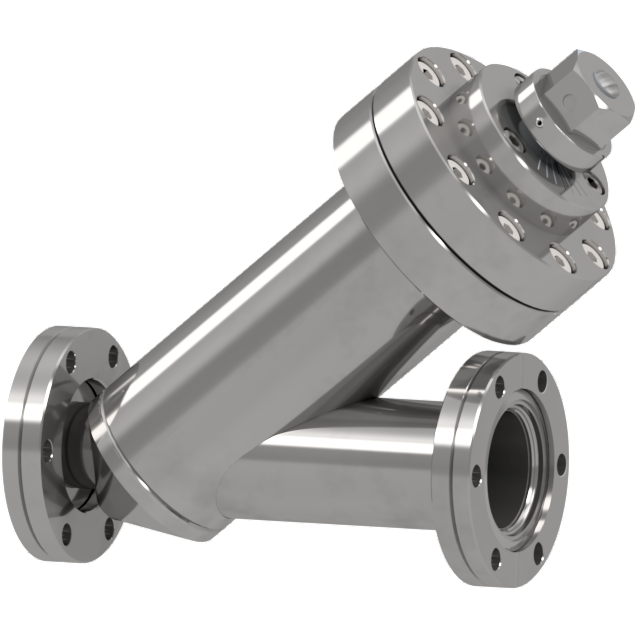

STBAV-150-F

Bakeable All Metal Valves

Key's All Metal Bakeable Valves are designed for Ultra High Vacuum applications, are intended for high temperature service, as well as cryogenic applications. Key's reliable design offers hundreds of leak free cycles of the OHFC poppet without replacement.
  • Bakeable to 400°C (open), 300°C (closed) Cryogenic to -200°C
  • Bellows Sealed
  • High Conductance
  • User replaceable OHFC bonnet
  • UHV service to < 3 x 10-11 Torr





Bakeable All Metal Valves

Bakeable All UHV Valves

Bakeable All UHV Valves


PART NUMBER FLANGE OD A B C D
STBAV-150-F 2-3/4” 6.00 4.92 7.24 3.38
STBAV-250-F 4-1/2” 9.00 9.00 9.72 4.47



Torque

  • STBAV-150-F 20 ft/lbs (min) to 40 ft/lbs (max)
  • STBAV-250-F 20 ft/lbs (min) to 60 ft/lbs (max)
Product information is subject to change without notice. Product images may include options or accessories not included with the base model.
